Mini usb charger cable for mini port mobile phone with RoHS certificate

Mini usb charger cable for mini port mobile phone with RoHS certificate

Contact Now
DESCRIPTION Datasheet

Mini usb charger cable for mini port mobile phone with RoHS certificate



Features:

1.Mini usb charger cable
2.plug and play
3.high speed up to 480Mbps
4.data transfering and charging function
5.All materials comply with RoHS

6.Complies with fully rated cable specification using braid-and-foil shield protection

7.Shield to ensure interference free operation EMI/RFI interference guarded

8.Flexible jacket for maximum usability



USB Mini Connector Pinout:

Pin # Pin Description Colour Function
1 +5V Red Power
2 Data- White Negative Signal
3 Data+ Green Positive Signal
4 ID None Permits distinction between Micro A and Micro B connectors - A connected to ground, B not connected
5 Ground Black Signal Ground




Detail photos:

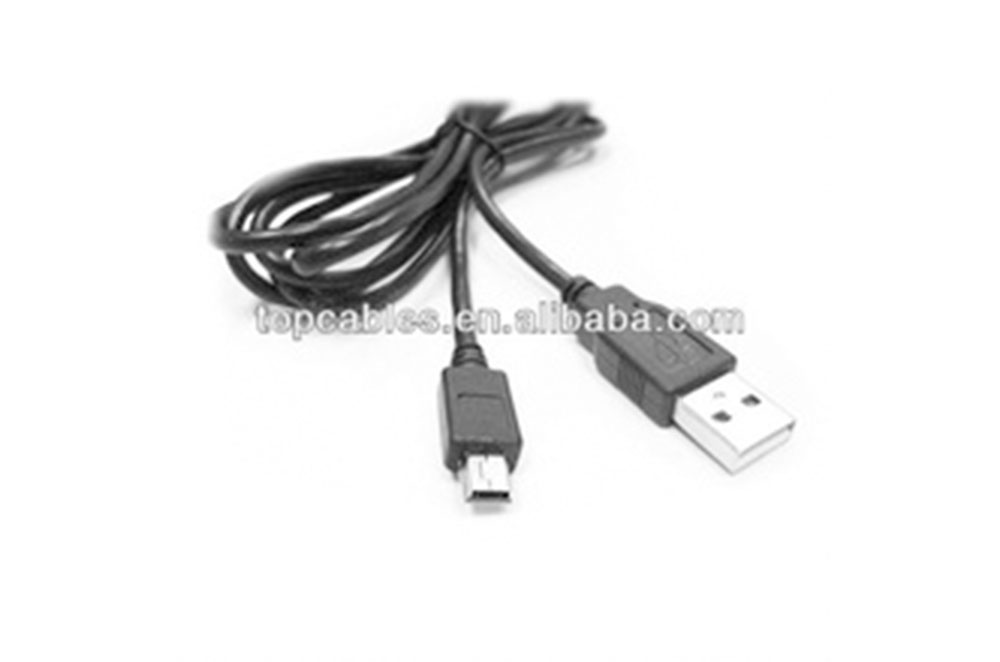

Standard 2.0 Mini USB cable

usb to micro 90.jpg

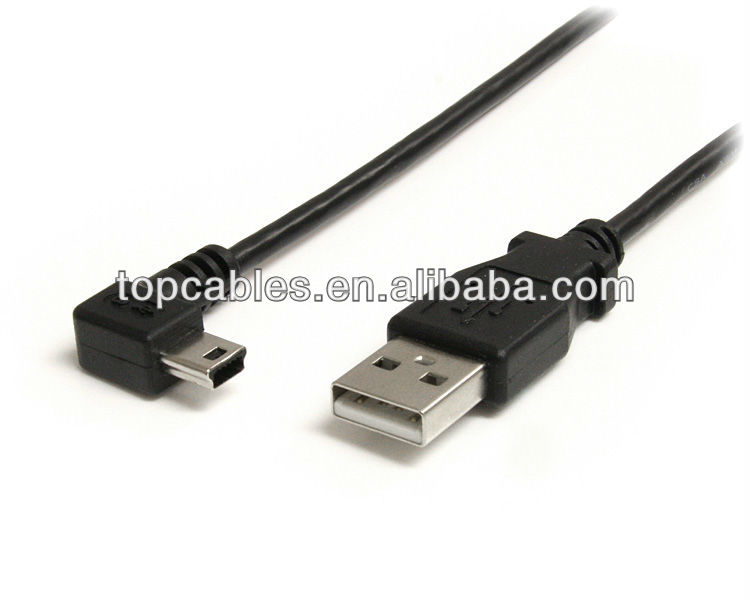

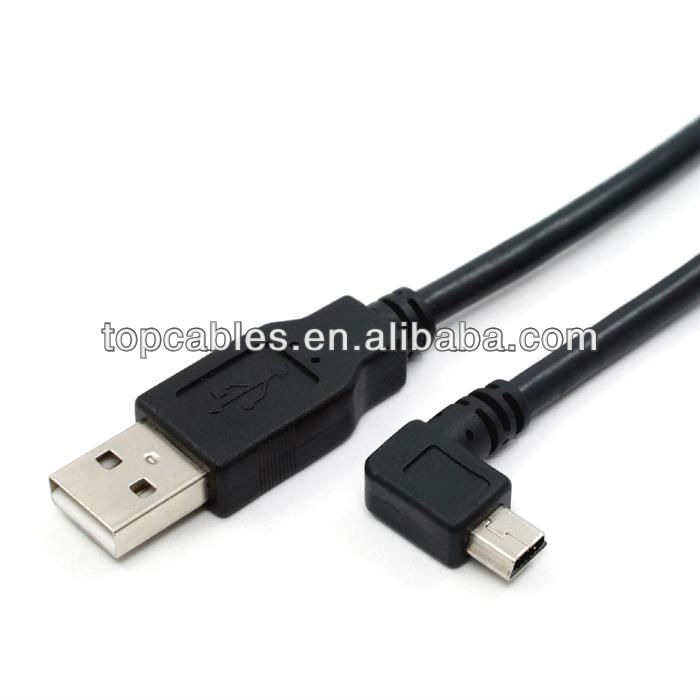

USB to mini 90 degree.jpg
