Product Details

Model Number:TK02041

Brand Name:Totek

Origin:China (mainland)

Key Specifications/Special Features:

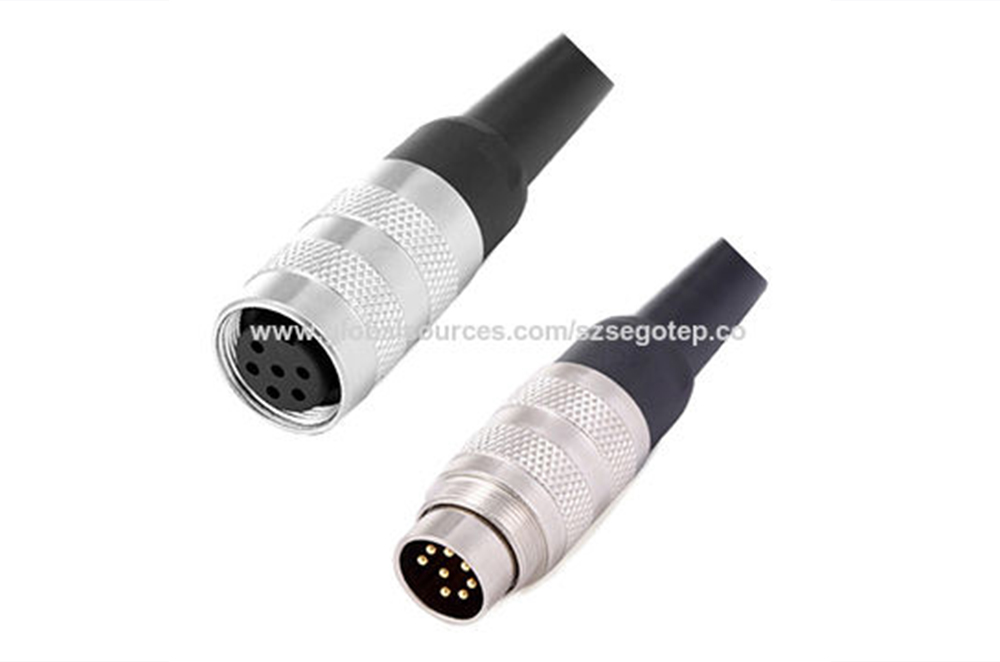

M16 circular connector, overmold C091 male to female IP 67 PI 68 cable
Key specifications/special features:
Connector series: M16
Gender: male, female
Locking type: fix screw
Mounting type: straight, overmold
Refers to coding type
Refers to pins number
X refers to cable specification

 Pin: 2/3/4/5 pins-a/5 pins-b/6/7 pins-a/7 pins-b/8 pins
 Standard: IEC 61076-2-106
 Ambient temperature: -25 to +70°C
 Connector insert: PBT
 Connector screw/body: Brass with nickel-plated
 Coupling screw: PA+GF
 Connector contacts: brass with gold-plated
 Seal/O-ring: NBR/FKM
 Insulation-resistance: ≥100MΩ
 Contact-resistance: ≤ 5mΩ
 Shielded available/unavailable
 Suitable cable dia. PG7: 4-6mm
 PG9: 6-8mm
 IP rating IP67 in locked condition

This AISG cable is used to feed data and power from the controller to the Remote Electrical Tilt (RET) system components.

Features:
Compatible with AISG connectors
Outdoor IP67 compliant
Flame retardant, Polyurethane jacket
Up to 100% humidity

Applications:
Remote electrical Tilt (RET) applications
AISG compliant antenna control units
Tower mount amplifiers with AISG interface
Control network interfaces with AISG interface
