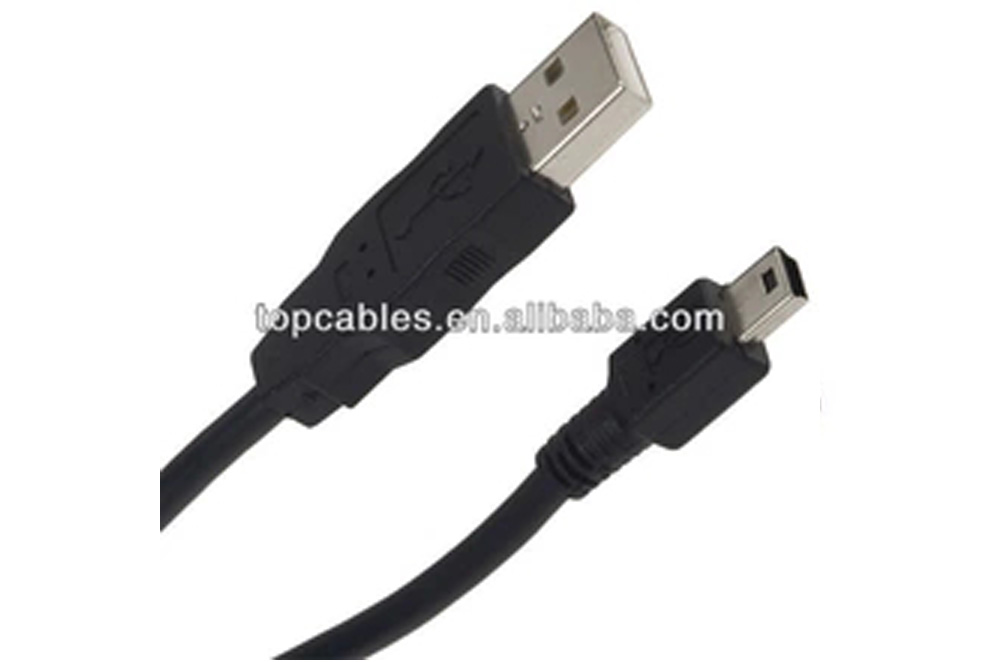

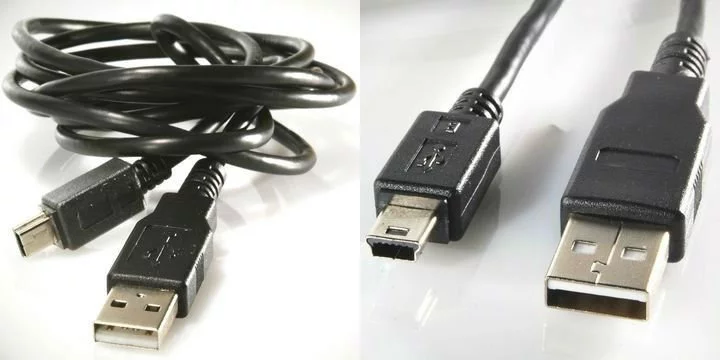

Hi-speed data transformation 2.0 USB mini cable
Features:
· Hi-Speed multi-shielded USB 2.0 A-Male to B-Male cable
· Connects mice , keyboards , and speed-critical devices,
such as external hard drives , printers , and cameras to your computer
· Constructed with corrosion-resistant , gold-plated connectors for optimal signal
· Light weight,flexibility
USB Cable Specifications
|
Connector plating |
Gold-plated ,Nickel-plated |
|
Contact |
Copper Alloy |
|
Shielding |
Foil and Braid |
|
Jacket Color |
BLUE,BLACK,WHITE or optional |
|
Conductor |
Bare copper ,Tinned copper or optional |
|
Over mold |
PVC 80Pa ,UL94V-0 Black |
|
Pre mold |
PE Low Density |
|
Withdraw Force |
10N Min |
|
Insertion Force |
35N Max |
|
Contact Resistance |
0.01 OHM Max |
|
Insulation Resistance |
10M OHM /300V Min |
|
Hi-Pot |
DC 300V 10ms |
|
Working Temperature |
-25°C~ +85°C |
|
Compatibility |
USB 1.0 & USB 2.0 |
Applications:
This USB Cable allows you to make a powerful connection between your device such as
a smart phone, GPS, or digital camera and your PC. Charge your device simply by
connecting it to you PC's USB port. (See specifications of each device in the device's user manual.
Some devices will require an A/C power adapter to charge).
1.Create routes and waypoints on your PC and transfer them to your GPS.
2.Transfer files from your smart phone or PDA to and from your PC.
3.Save pictures and movies from your digital camera or digital camcorder to your PC.
4.Connect your external hard drive to your PC for backing up or accessing files.
