DESCRIPTION
Datasheet

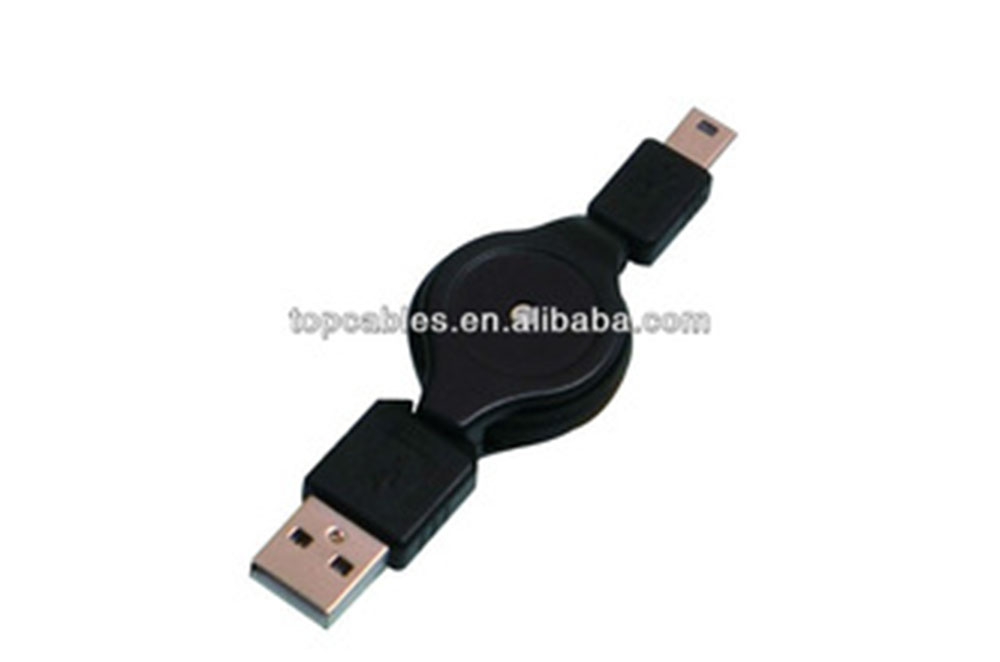

| Factory direct sell flexible mini usb cable with cheapest price | ||
| Features | USBcable have a desigh of backward compliant to lower USB standard. Pair-shieldis designed to satisfy the application of high-speed transmission under minimum EMIimpact to ensure the integrity of signals in transmission. USB3.0 patch cord have its advantages of ultra-fast transmission speed,ease of use and high compatibility. Meanwhile, this cable is also prepared and supporting for the future optical fiber transmission. | |
| Application | High-resolution web camera, video monitor, video display, digital cameras, digital Blu-ray video cameras and other modern electronic devices. | |
| Description | Rated temperature:80 Stranded tinned copper conductor RoHS compliant PVC/PE Reference:UL2725 & USB3.0 specification | |
| Electrical characteristics | DC resistance (20) | 30 AWG ≤376.96 /KM 28 AWG ≤237.25 /KM |
| Insulation resistance | FOAM-PE,PE:AC-100V 100M /KM MIN. at20 | |
| Differential impedance | 90±7 | |
| Contacts differential impedance | 90±15 | |
| Intre-paie skew | ≤15ps | |
| Insertion loss | ≤-25 Db(7.5GHz) | |
| NEXT(3.0 TO 3.0) | ≤-23 Db(3.0-7.5GHz) | |
| NEXT(2.0 TO 3.0) | ≤-15 Db(3.0-7.5GHz) | |
| FEXT(2.0 TO 3.0) | ≤-15 Db(3.0-7.5GHz) | |

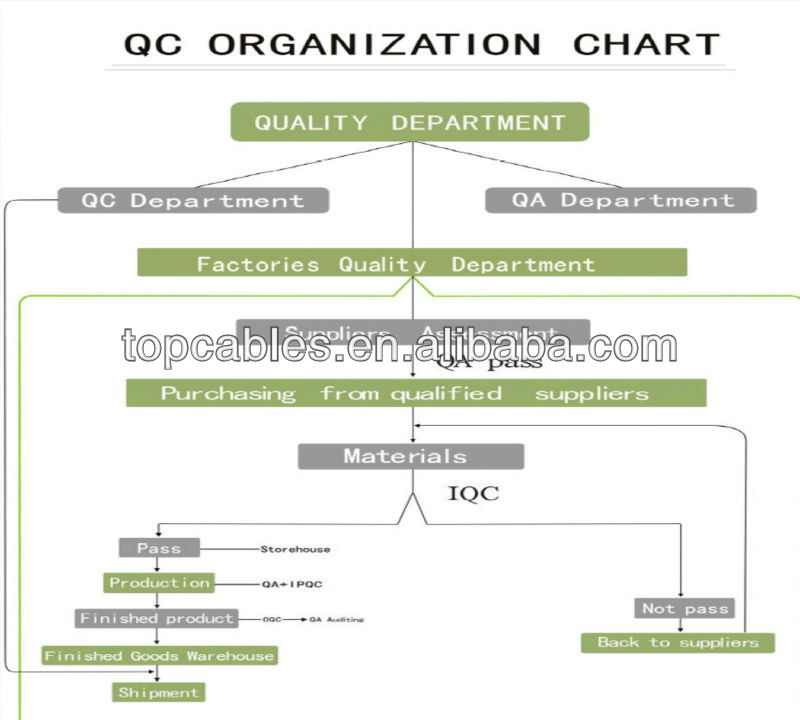

QC process:
