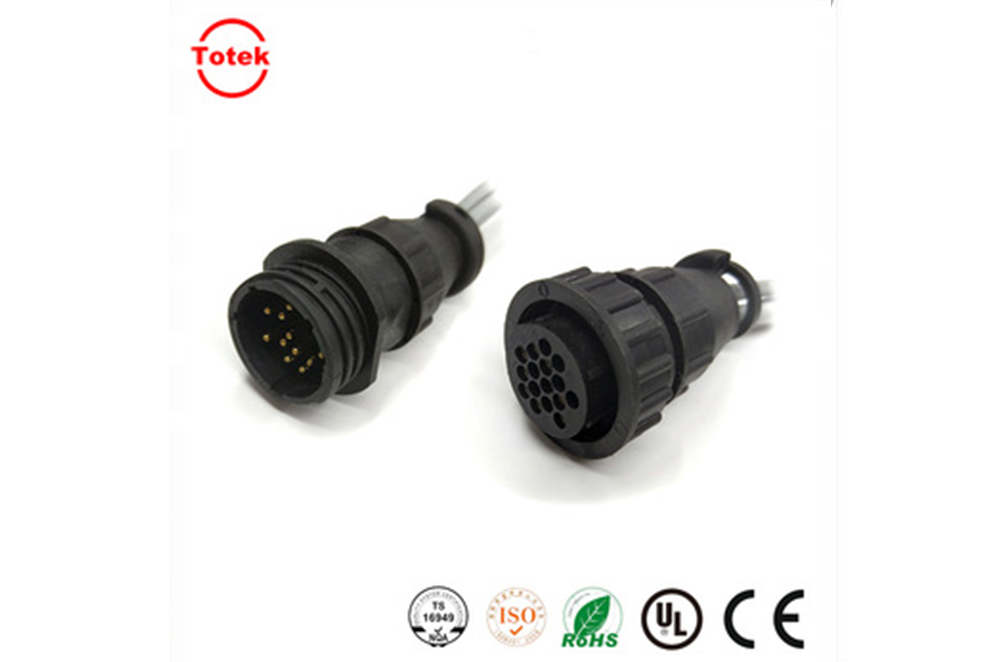

Dongguan Factory direct sell original TE 37Pin CPC circular connector cable assembly



Product Facts:

1. Lightweight, all-plastic and metal-shell connectors.

2. CPC connectors are UL94V-0 rated and made of stabilized, heat resistant, selfextinguishing thermoplastic material.

3. Metal-shell CPC connector housings made of UL 94V-0 rated thermoplastic.

4. Operating temperature range: -40°C to +105°C.

5. Available in panel or chassis mount and free-hanging configurations.

6. Quick connect/disconnect capability with thread assist, positive detent coupling.

7. Built-in pin and socket protection.

8. Polarized for proper mating of connector halves.

9. Special connector configurations offer special solder and posted contacts, special receptacles with or without threaded inserts.

10. All solder joints to conform to IPC-A-610, RoHS Compliant.

11. We can make it according to your drawing.

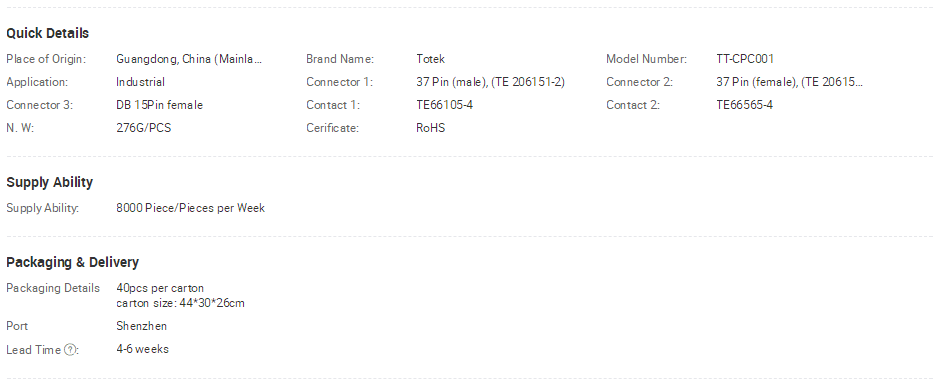

Product parameter:



Connector Housing Plastic
Connector D-Sub, 15 pos female, solder cup
Pin contact 22AWG Crimp snap-In (TE66103-4)
Recepttacle contact 1 22AWG Crimp snap-In (TE66105-4)
Recepttacle contact 2 22AWG Crimp snap-In, double wire (TE66565-4)
Circular connector 1 37 Pin (male), (TE 206151-2)
Circular connector 2 37 Pin socket(female), (TE 206150-1)
Discrete wires 37 wires, 22AWG
Cable 20AWG, 8 Conductors

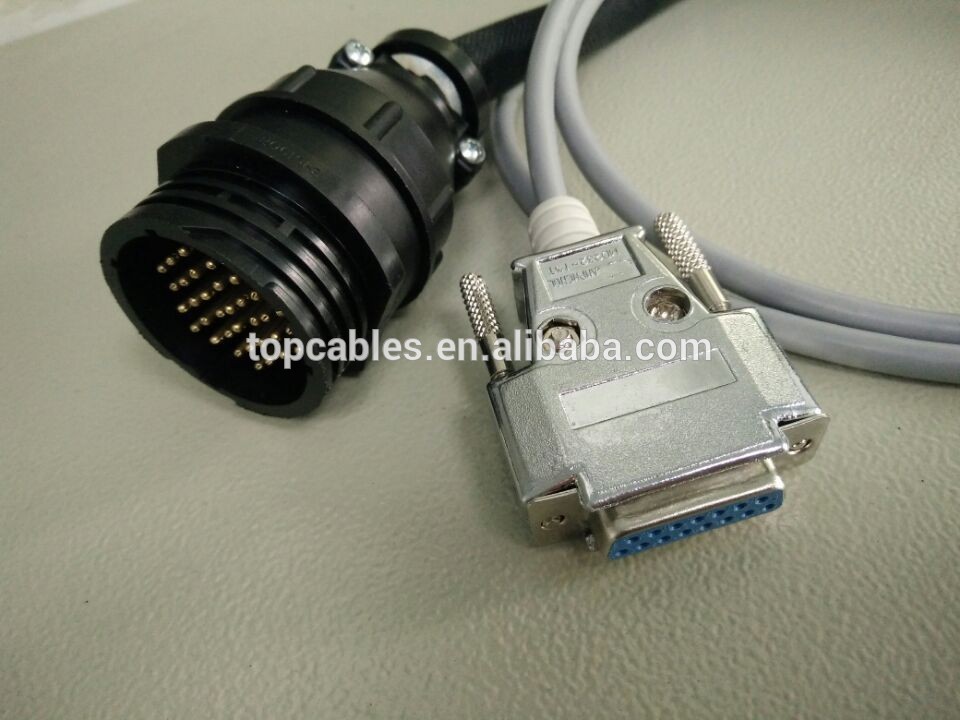

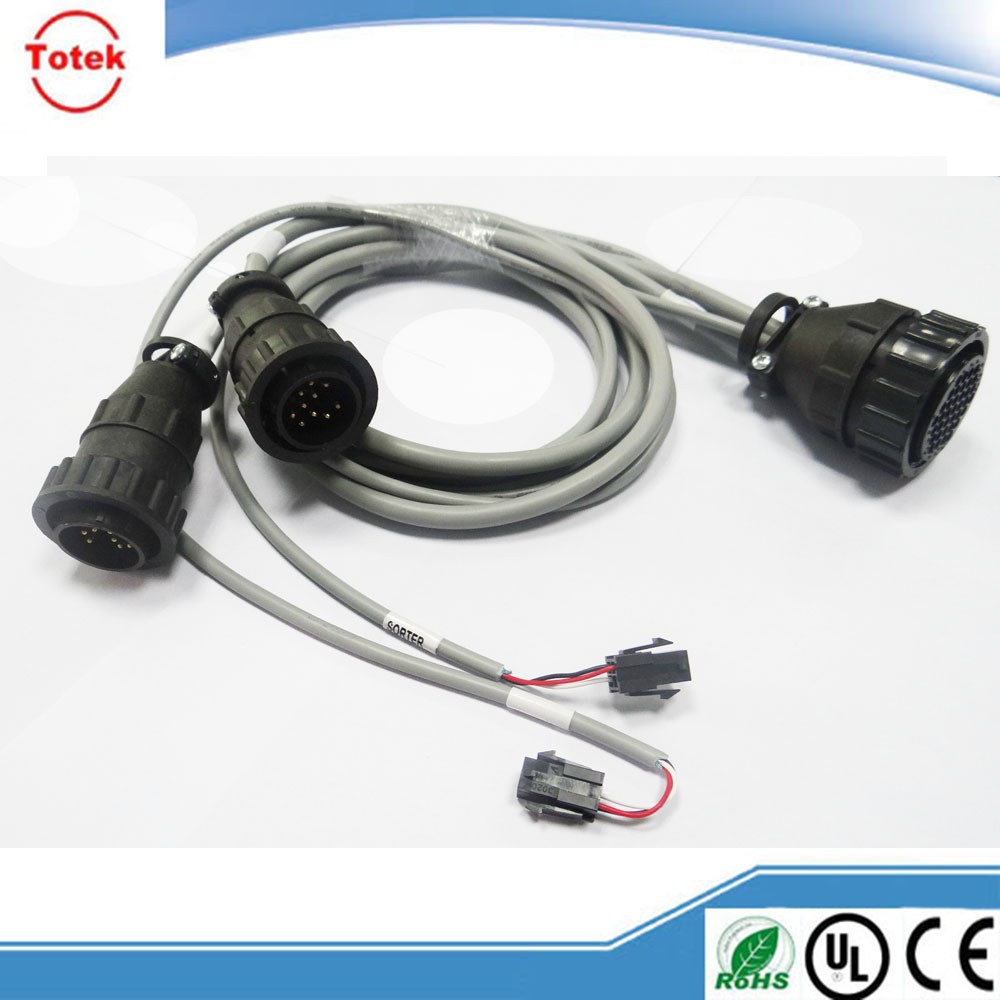

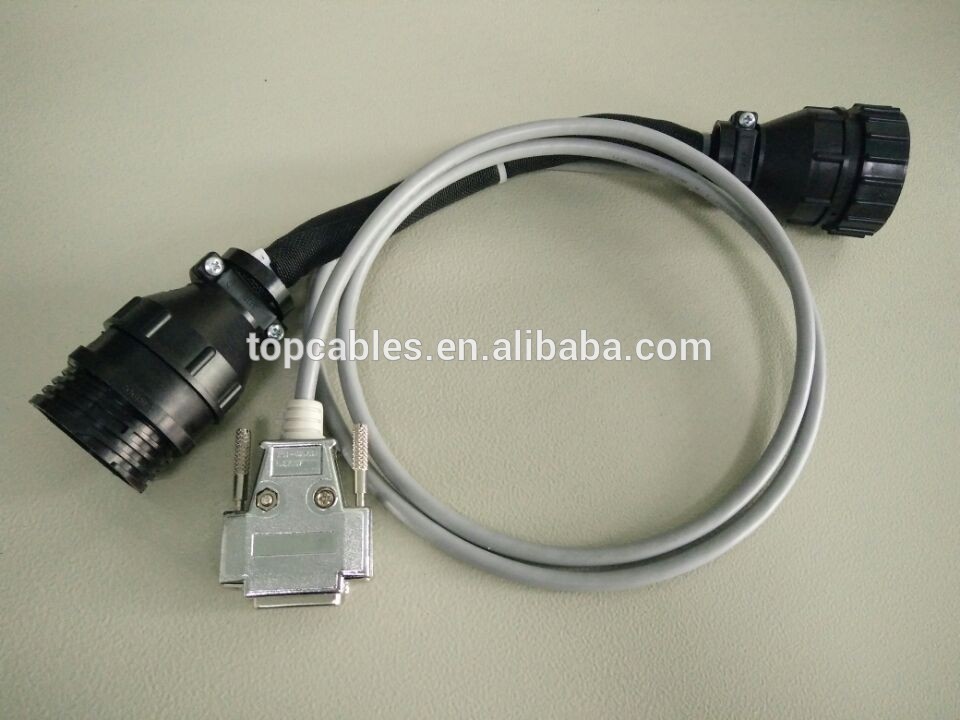

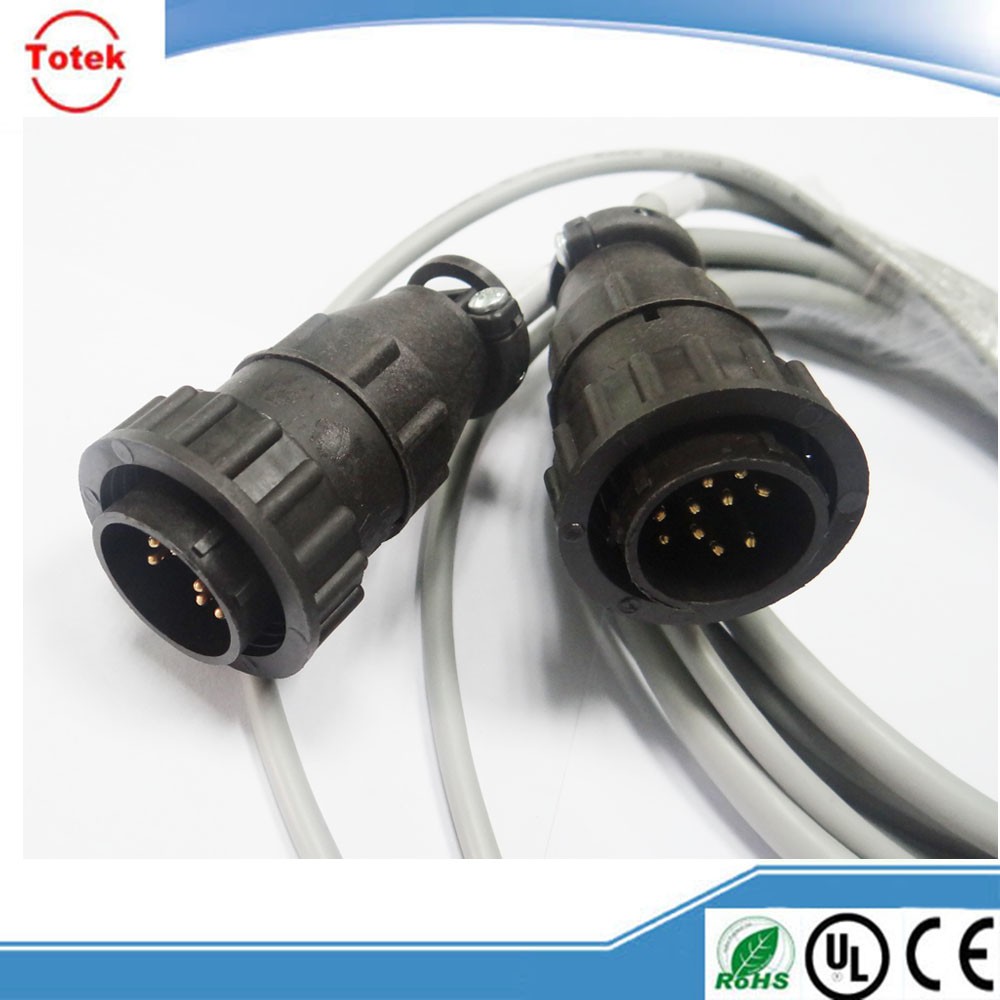

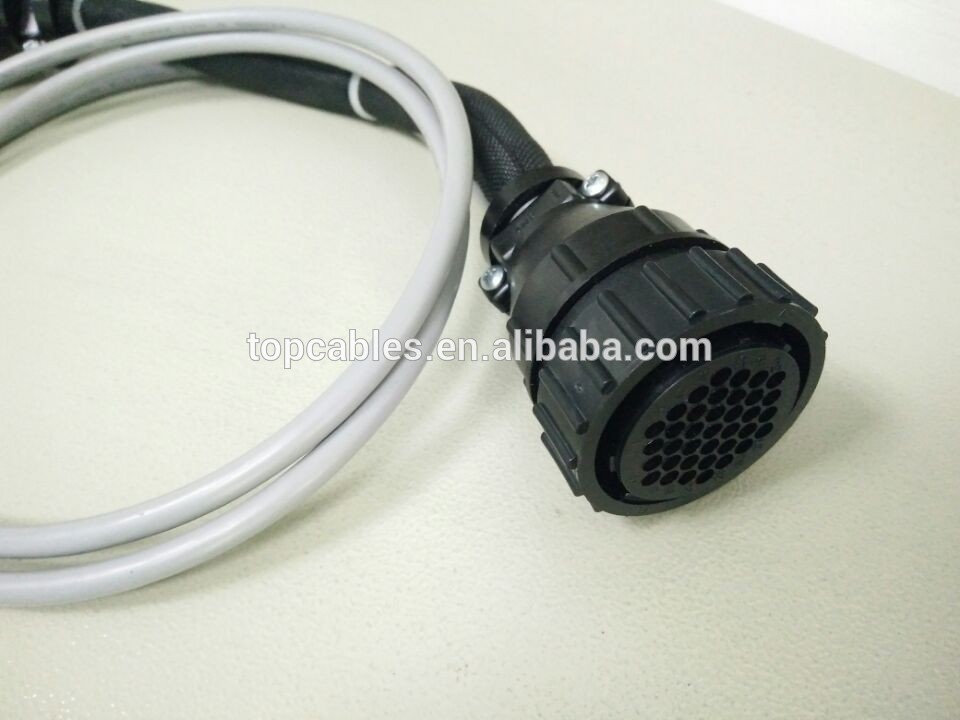

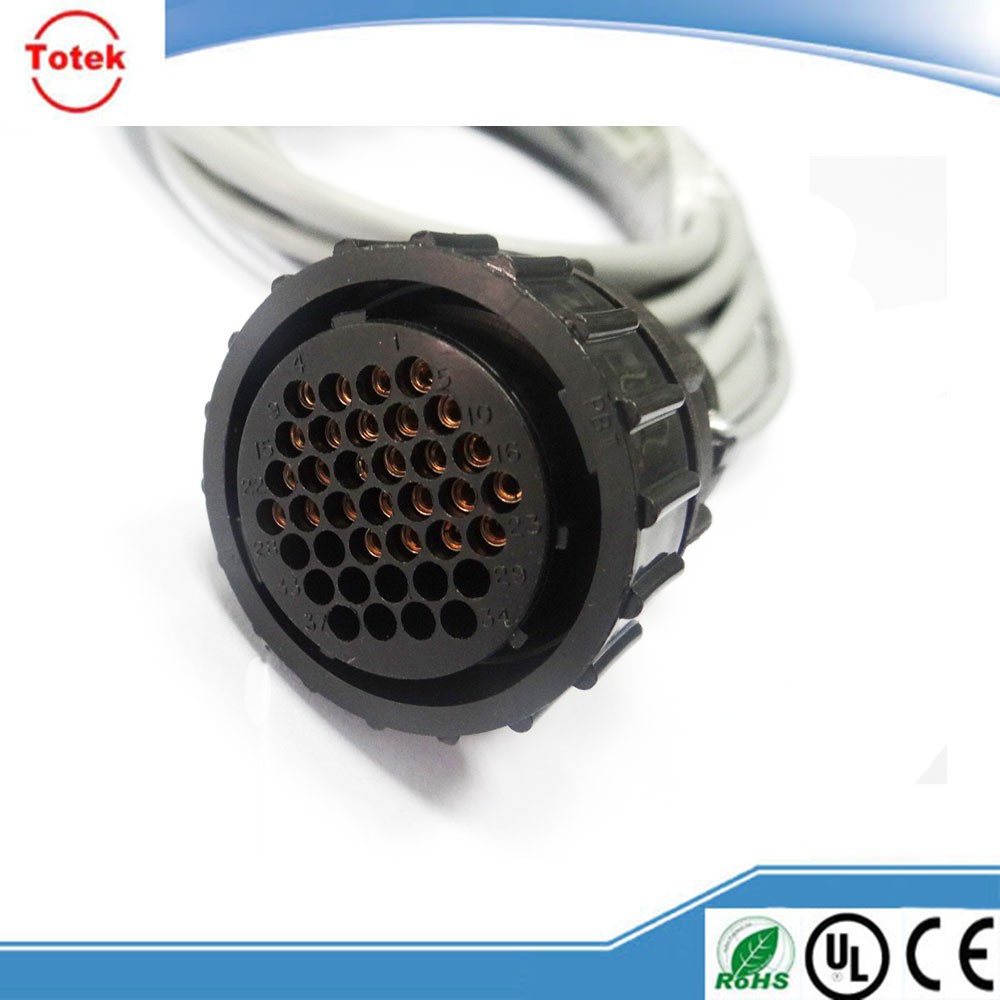

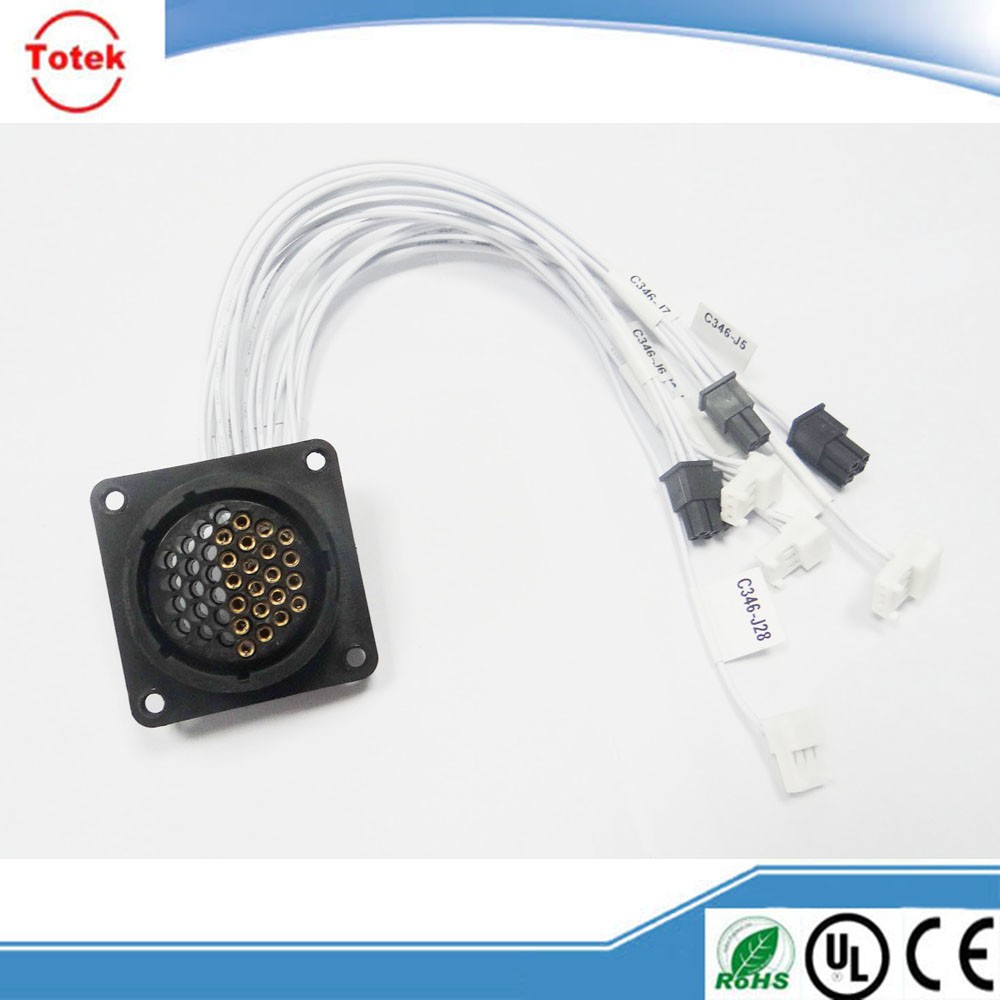

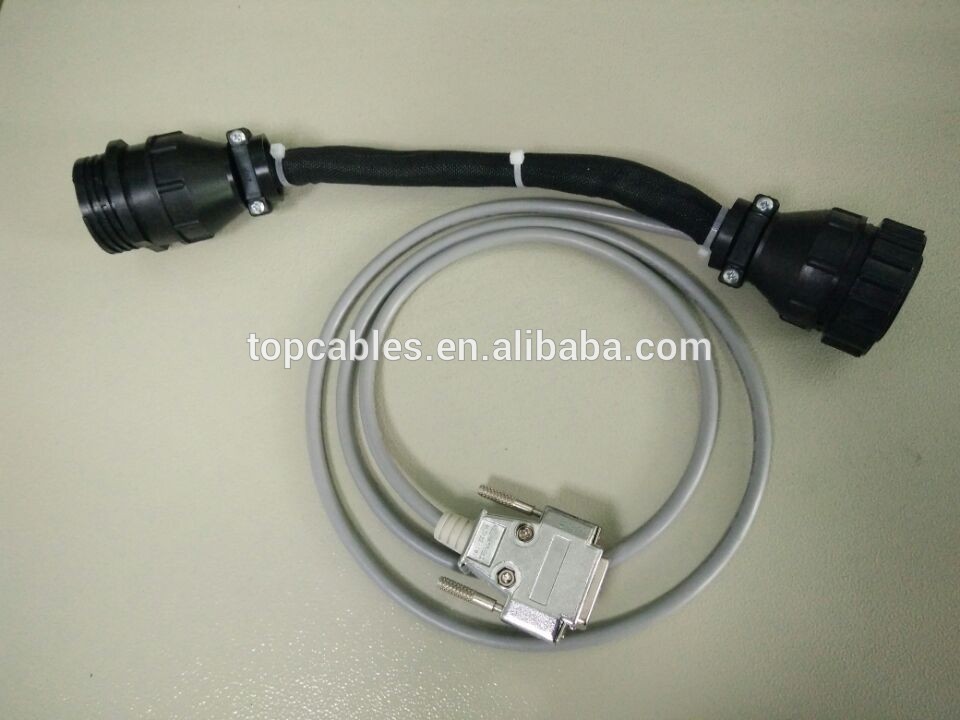

AMP CPC connector cable (3) AMP CPC connector cable (4) AMP CPC connector cable (2)AMP CPC connector cable (1) CPC 2.jpg cpc 5.jpgcpc 1.jpg CPC 3.jpg
