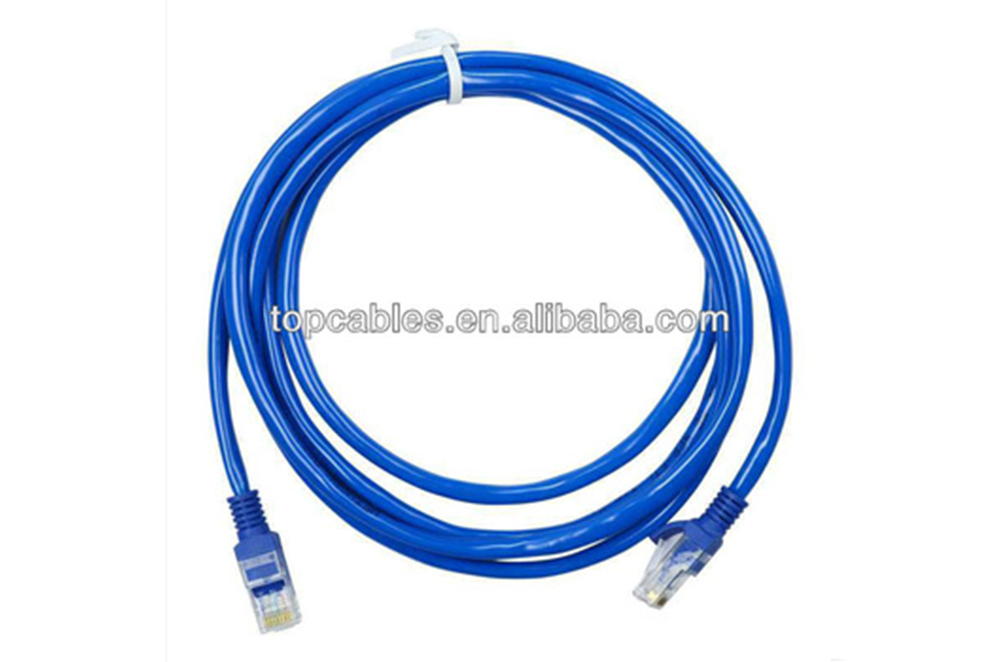

Structure:
Conductor: Solid/stranded wire BC(bare copper)
AWG: 26AWG
Connector: 8P8C to 8P8C
Twisted pair: 4
Shield:UTP ( Unshield Twisted Pair)
Insulation:PVC
Jacket: PVC
Rip cord: Per request
Color: white, black, blue, grey, green or per your request
Electrical Parameter
Contact |
Gold flash 50um |
Conductor |
Bare copper |
Conductor resistance |
Max 9.38ohm/100M at 20°C |
Max. ring resistance |
16.8 ohm/100M at 20°C |
Standard impedance |
100±15 ohm between 1Mhz and 100Mhz |
Minimum bending radius |
50mm |
Working temperatures |
-20~80°C |
QC Process:
Shipping Information:
We guarantee to ship out within five to seven days after the confirmation of your payment.(Except Holiday).
In order to ensure you receive your order tax free upon import, we will declare small sample order as a 'GIFT' with a lower value.
This lower price does not reflect the total price you paid or the market value of the product. And it may not apply to countries with different tariff rules. Any import charges or fees are the buyer's responsibility.
