DESCRIPTION
Datasheet
factory direct sell micro USB OTG cable
| Features | USB3.0 | USB2.0 |
| Data Rate | SuperSpeed (5.0Gbps) additional | low-Speed (1.5Mbps) |
| full-Speed (12Mbps) | ||
| high-Speed (480Mbps) | ||
| Data Signal | SS OUT Differential Signal: 1 Pair | Differential Signal: 1 Pair |
| SS IN Differential Signal: 1 Pair additional | ||
| Connector Signals | 4 wires: SuperSpeed | 2 wires: DP/DM for USB 2.0 |
| 2 wires: DP/DM for USB 2.0 | 2 wires: Vbus/GND | |
| 3 wires: Vbus/GNDx2 | ||
| Bus Protocol | No polling | Uses polling |
| Power Control | Configuration at multiple link levels | Suspend/Resume by Port |
| Power Supply to Bus | Max. 900 mA | Max. 500 mA |
Electrical:
| 100% open & short test | ||
| Voltage : 300V DC, 5MΩ/10ms | ||
| Insulation Resistance: 10M OHM /300V Min. | ||
| Contact Resistance: 0.01 OHM Max. | ||
| Shield up to 65% braid. | ||
| Working Temperature: -25 ° ~ +80 ° |
Mechanical:
| Over mold: PVC 70Pa UL94V-0 |
| Pre mold: PE Low Density |
| Contact: Copper Alloy. |
| Insertion Force: 35 N Max. |
| Withdraw Force: 10 N Min |

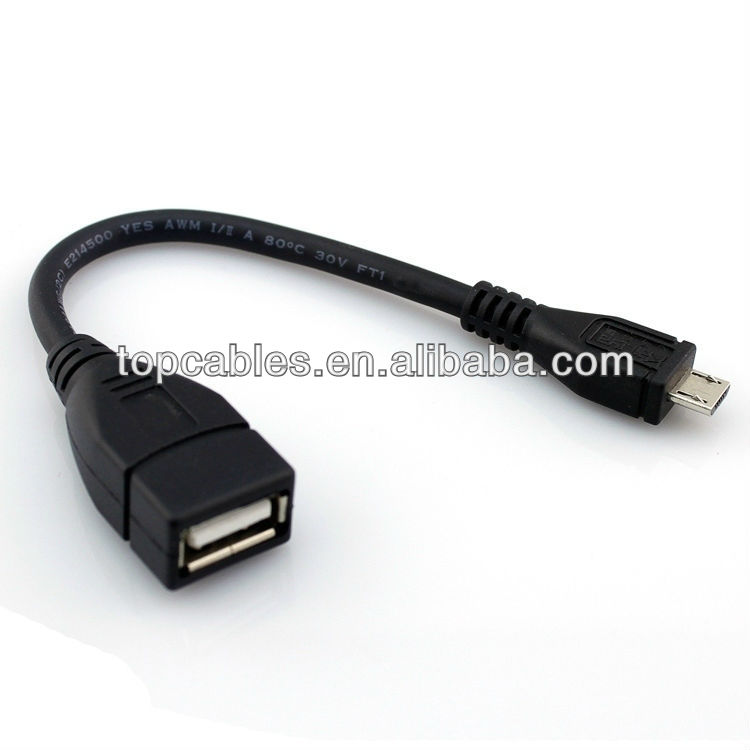

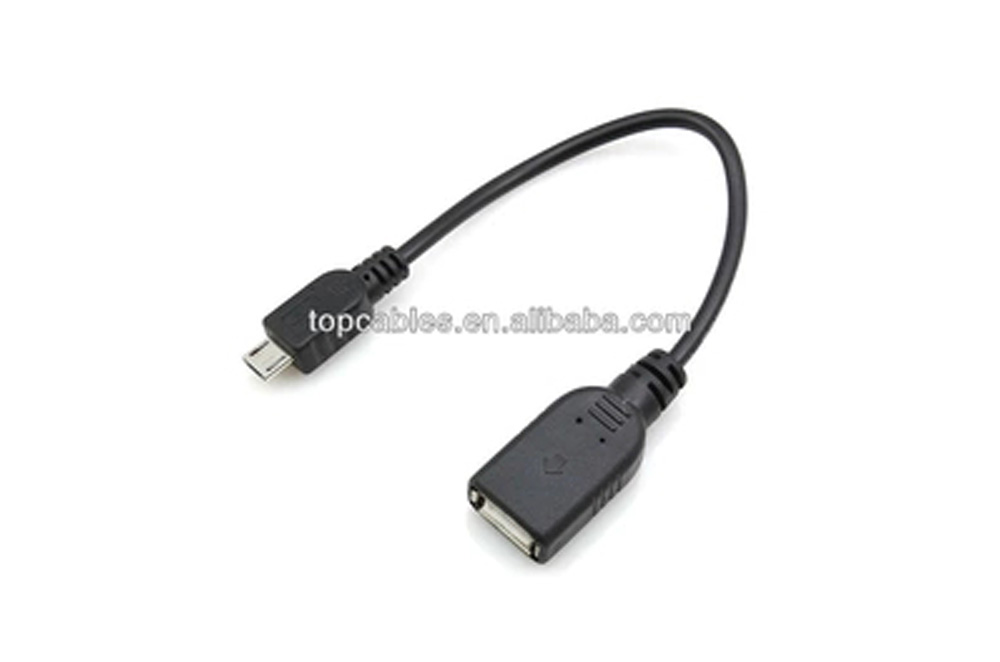

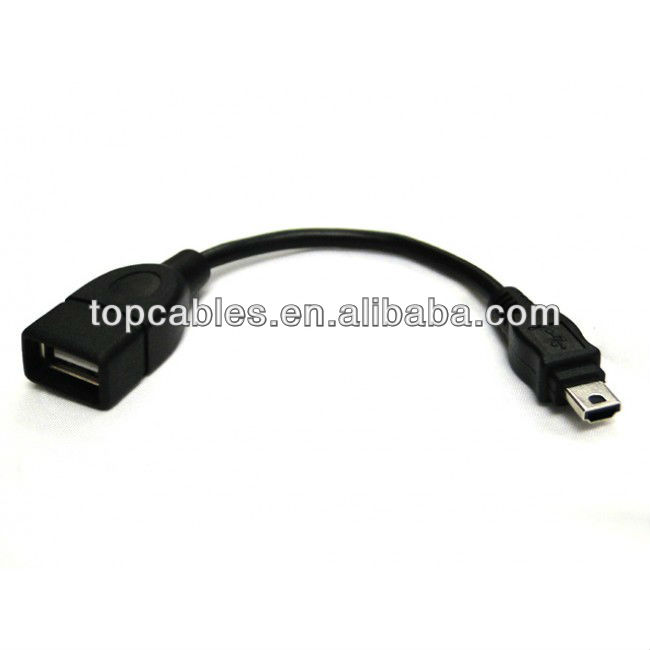

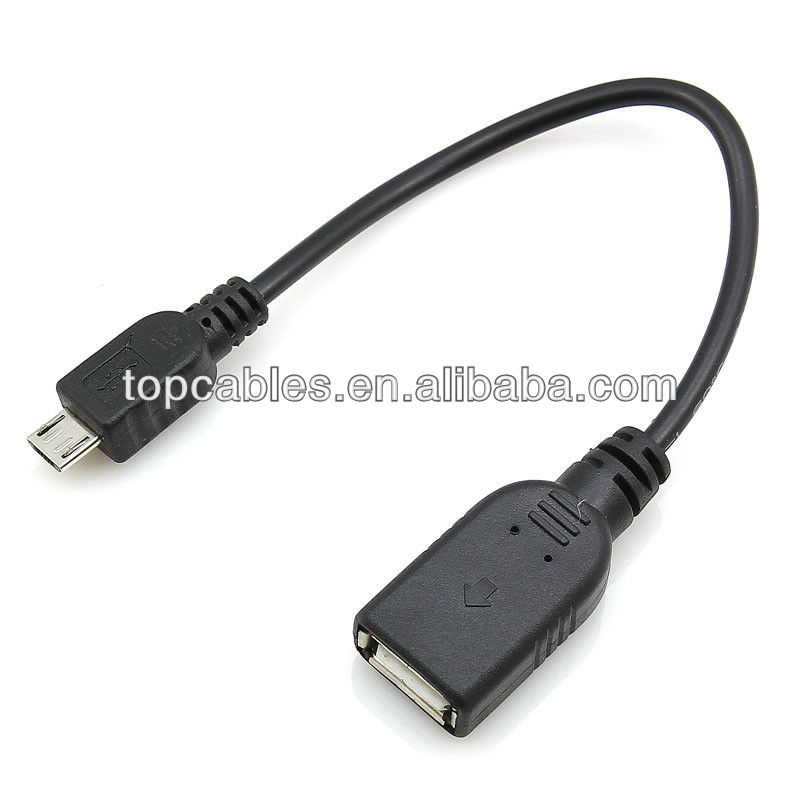

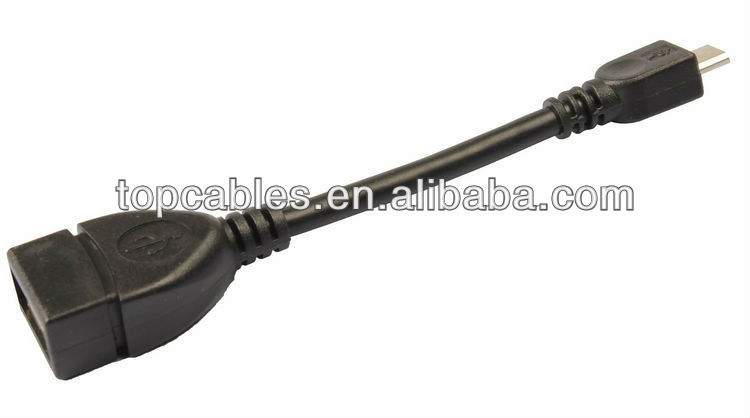

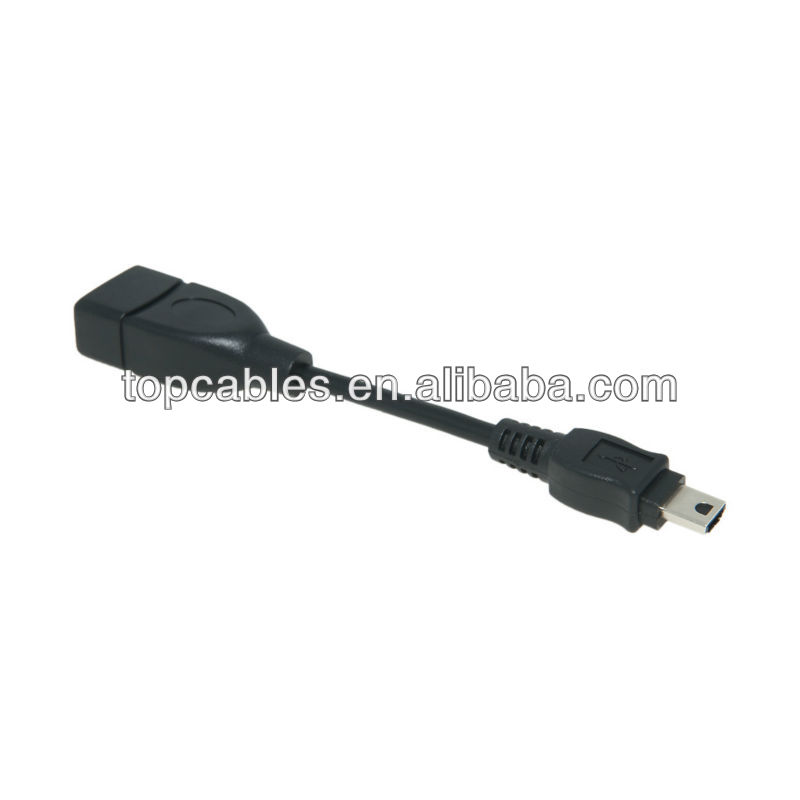

Detail photos:
