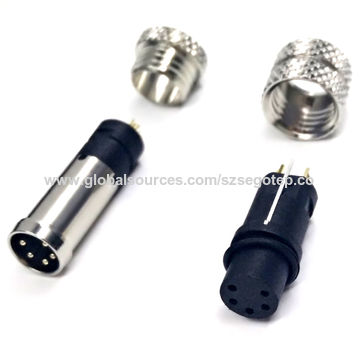

1. Description:

M8 connector is designed for the device connection for sensor/actuator boxes, field-bus modules and industrial controllers

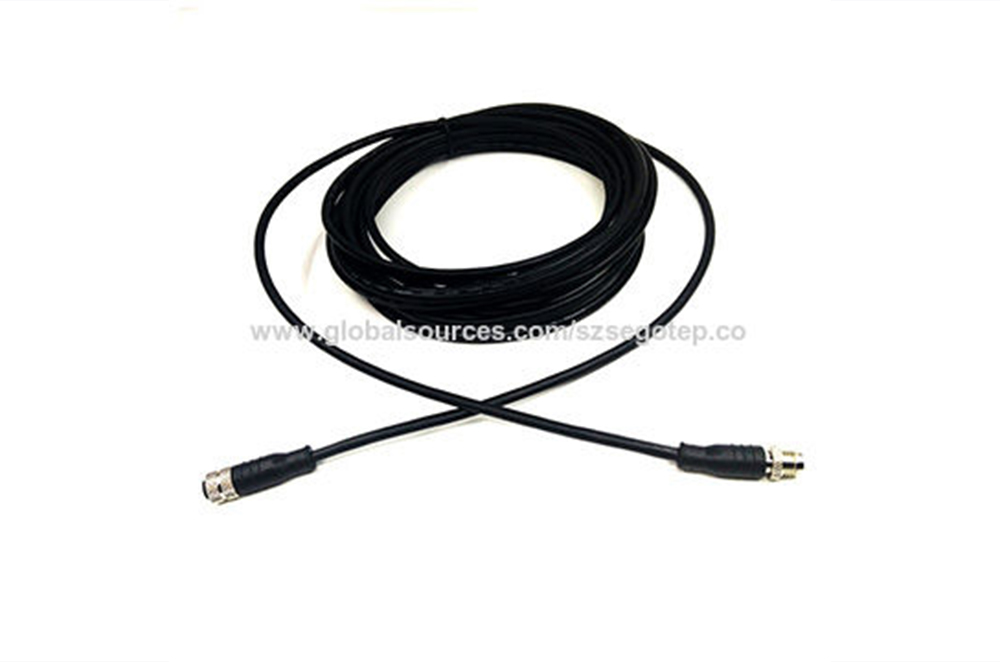

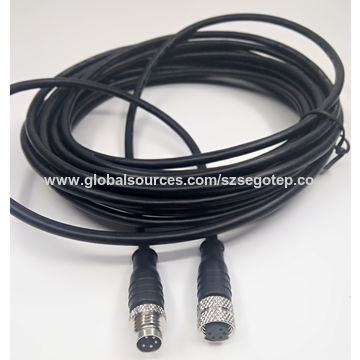

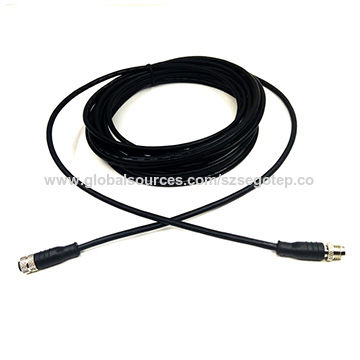

It provides with 3, 4, 5, 6, 8 contacts configuration cable cord sets and panel receptacles, most of the connectors are either factory PUR/PVC cable over molded or supplied with attached wire leads, 360°EMC shielding is available as option
With 8mm threaded joint, quick and easy mating and locking, even in places difficult to reach, anti-vibration locking design

2. Electrical and mechanical data:

• Standard: IEC 61076-2-104
• Gender: male
• Coding: A-code
• Connection type: single ended cable
• Orientation: straight
• Connector contacts: brass with gold-plated
• Coupling nut/screw: brass with nickel-plated screw
• Wire termination: soldering
• Wire gauge: 26AWG/0.14mm²
• Ambient temperature: -25 to 80°C
• Rated current: 1A
• Rated voltage: 30V
• Insulation resistance: ≥100mΩ
• Contacts resistance: ≤5mΩ
• IP rating: IP67
