Product Details

Model Number:TK02077

Brand Name:Totek

Origin:China (mainland)

Key Specifications/Special Features:

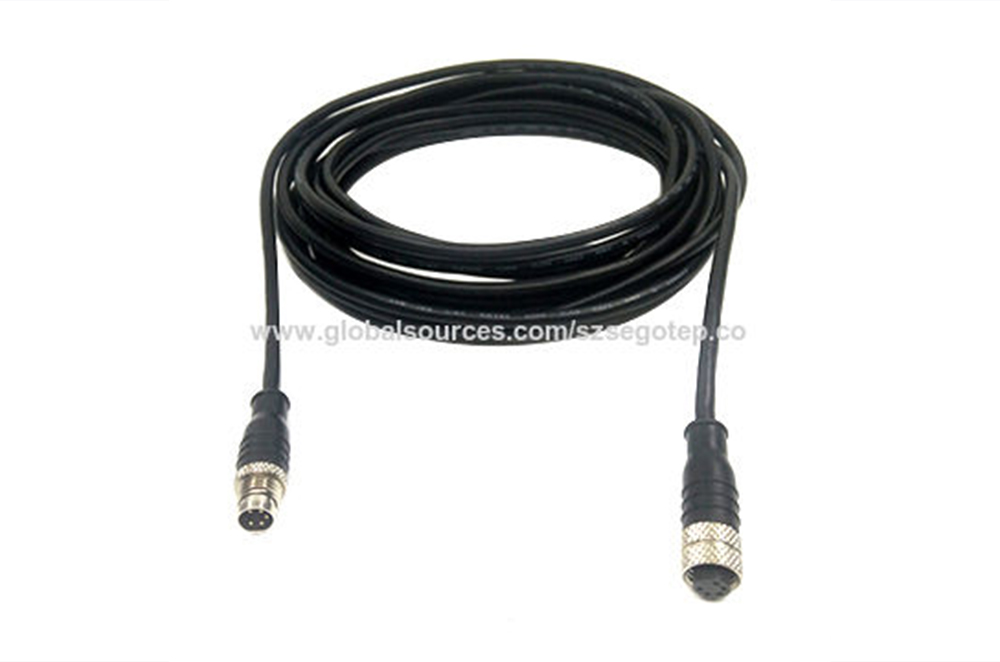

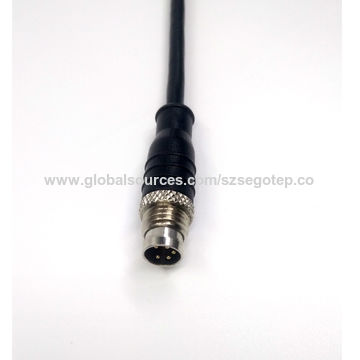

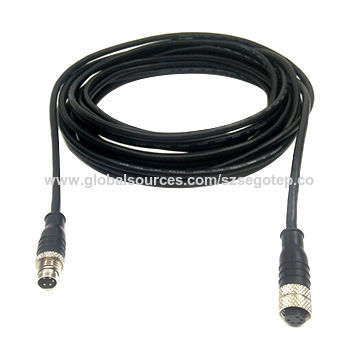

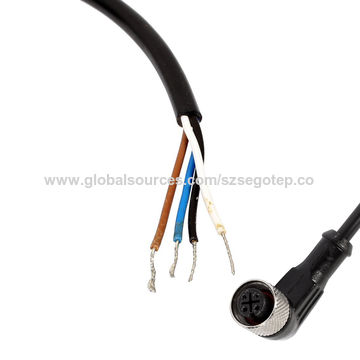

M8 Round Connectors Industrial Cables Cordsets 3Pin 4Pin 5Pin 6Pin 8Pin M8 Sensor Cables

M8 male female connector waterproof M8 sensor connector and cable made in China. waterproof connector IP67/IP68 protected from dust and water during immersion, resistant to many oils and chemical can be easily connected to proximity switches, photoelectric barriers, flow monitoring devices and field bus components sensor devices and actuator devices
Satisfy all the requirements of sensor devices and actuator devices in automation technology, commercial electronics PCBA, industrial safety light curtain, light grid, switches, M1 circular connector according to IEC 61076-2-101

Key specifications/special features:
- Pins: 2, 3, 4, 5, 8,  pins
- Stainless steel screws are available
- IP67/IP68, RoHS Directive, REACH, UL certified
- Generally description:
- Connector series: M8
- Gender: female to male
- Connector locking system: fix screw or customized
- Connector design: solder
- Mechanical operation: >100 mating cycles
- Waterproof rating: IP67/IP68
- Ambient temperature: -45 to +85°C
Materials:
- Connector body: PA66 + GF
- Contacts: brass/phosphorus copper with gold plated
- Screw/nut: brass with nickel plated
- Glue: black epoxy resin
- Waterproof 0-ring: FKM
- Wire jacket: PVC/PU
- Electrical data:
- Contact resistance: ≤5mΩ
- Insulation resistance: ≥100mΩ

- Sensor and actuators;
- Industrial camera;
- Industrial I/O connections;
- Material handling;
- Pharmaceutical manufacturing;
- Robotic systems; Semiconductors;
- Packaging, Labeling & Logistic.
