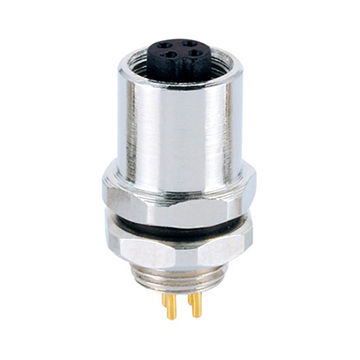

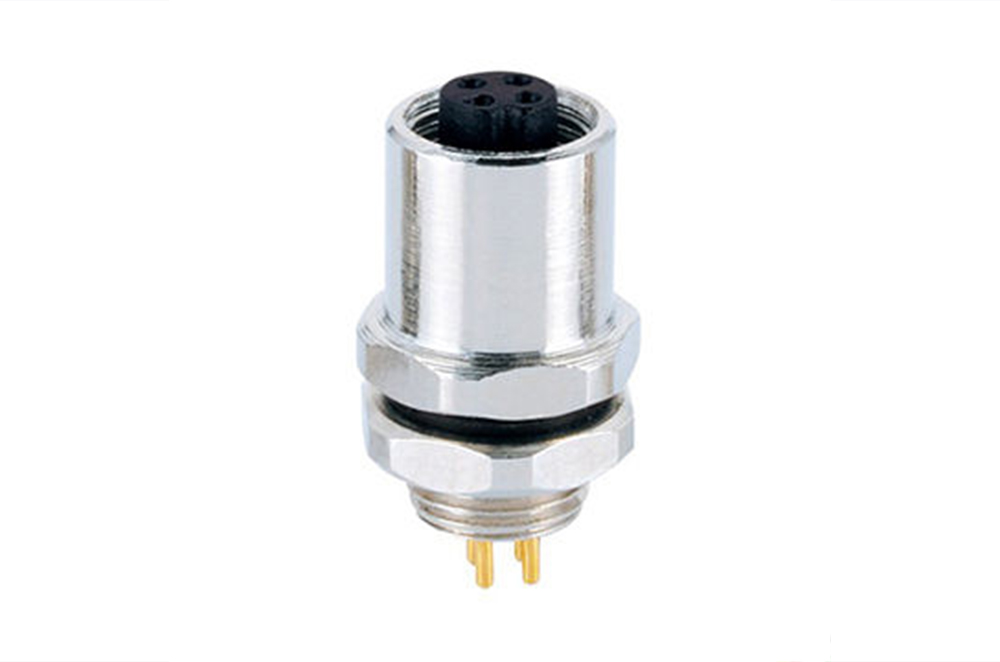

M5 4pin, female, PCB contacts, panel connector, rear fastened.jpgM5 4pin, female, PCB contacts, panel connector, rear fastened3.jpgM5 4pin, female, PCB contacts, panel connector, rear fastened4.jpg

Product Details

Model Number:TK0149

Brand Name:Totek

Origin:China (mainland)

Key Specifications/Special Features:

Description

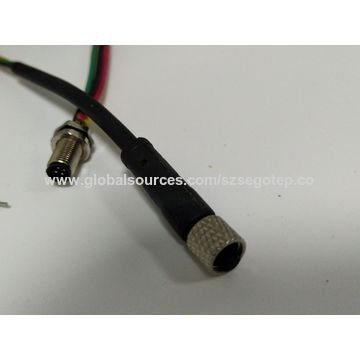

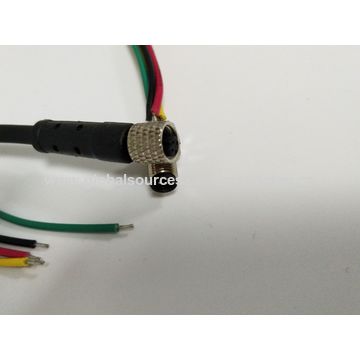

The M5 connectors provide 3 and 4 position cable cord sets and panel-mounted receptacles. All connectors are either factory PUR/PVC overmolded or supplied with attached wire leads.

● PUR or PVC overmolded
● Threaded nut immune to vibration
● Degree of protection IP 67
● Available with 3 or 4 poles
● Cable length 1m, 2m, 3m (PUR) or upon customized specification
Applications
● Miniature sensors
● Industrial camera
● Electrical bike
● Packaging, labeling & logistic
● Factory automation and fieldbus module
Quality statement
● Screws/nuts: brass with 120μ" nickel-plated, CNC parts.
● Male contacts: brass C3604, 3μ" gold plated on nickel base, machined solid pin.
● Female contacts: phosphor bronze C5441 with 3μ" gold-plated on nickel base, machined solid pin.
● Temperature range: dynamic -25 - 80℃, static: -40 - 80℃/105℃.
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● RoHS Directive-compliant.
