Key Specifications/Special Features:

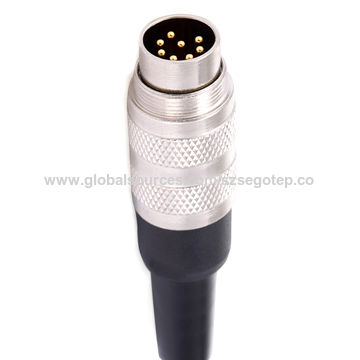

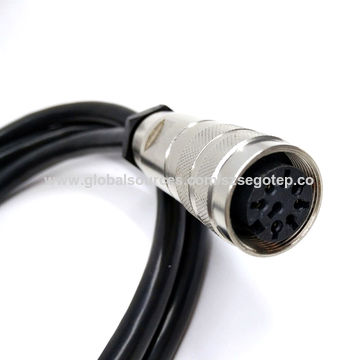

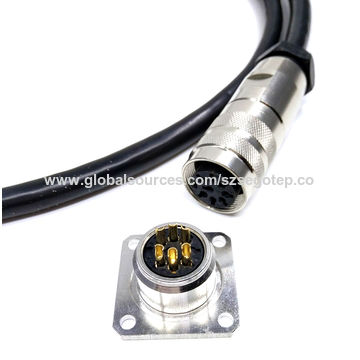

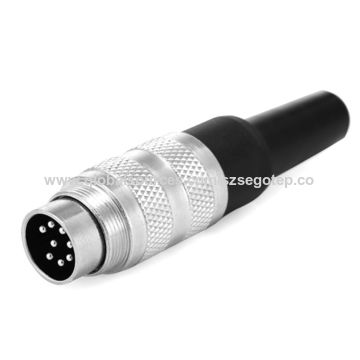

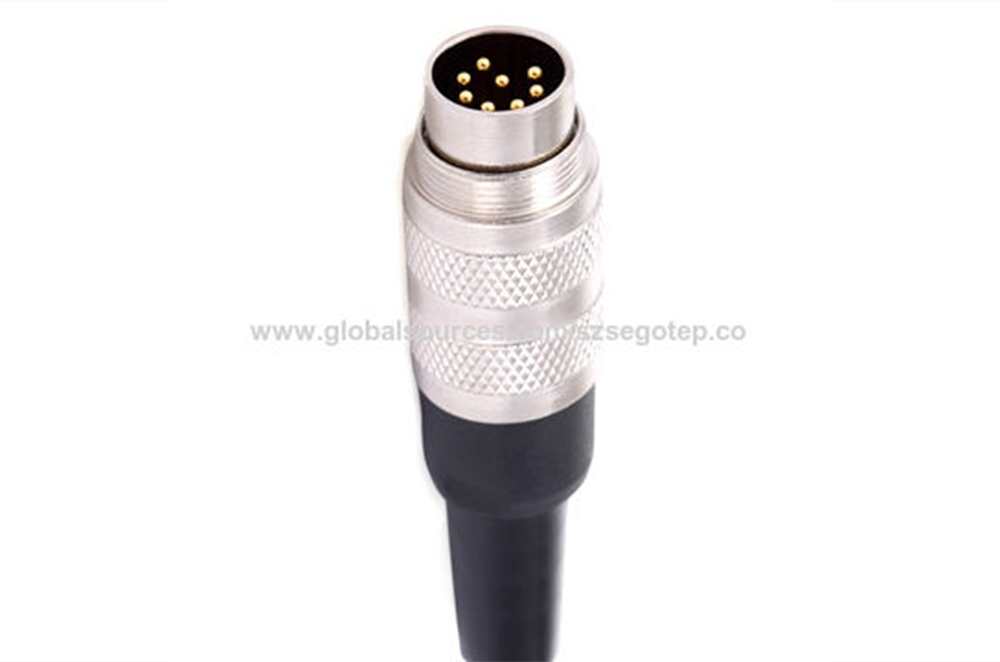

M16 Male 8poles metal senor connector waterproof cable
Key specifications/special features:
Connector series: M16
Gender: male, female
Locking type: fix screw
Mounting type: straight
Refers to coding type
Refers to pins number
X refers to cable specification
Pin: 2/3/4/5 pins-a/5 pins-b/6/7 pins-a/7 pins-b/8 pins
Standard: IEC 61076-2-106
Ambient temperature: -25 to +70°C
Connector insert: PBT
Connector screw/body: Brass with nickel-plated
Coupling screw: PA+GF
Connector contacts: brass with gold-plated
Seal/O-ring: NBR/FKM
Insulation-resistance: ≥100MΩ
Contact-resistance: ≤ 5mΩ
Shielded available/unavailable
Suitable cable dia. PG7: 4-6mm
PG9: 6-8mm
IP rating IP67 in locked condition

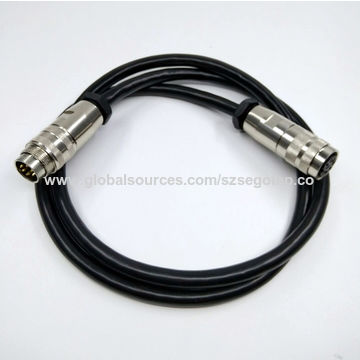

This AISG cable is used to feed data and power from the controller to the Remote Electrical Tilt (RET) system components.
Features:
Compatible with AISG connectors
Outdoor IP67 compliant
Flame retardant, Polyurethane jacket
Up to 100% humidity
Applications:
Remote electrical Tilt (RET) applications
AISG compliant antenna control units
Tower mount amplifiers with AISG interface
Control network interfaces with AISG interface
