Product Details

Model Number:TK02089

Brand Name:Totek

Origin:China (mainland)

Key Specifications/Special Features:

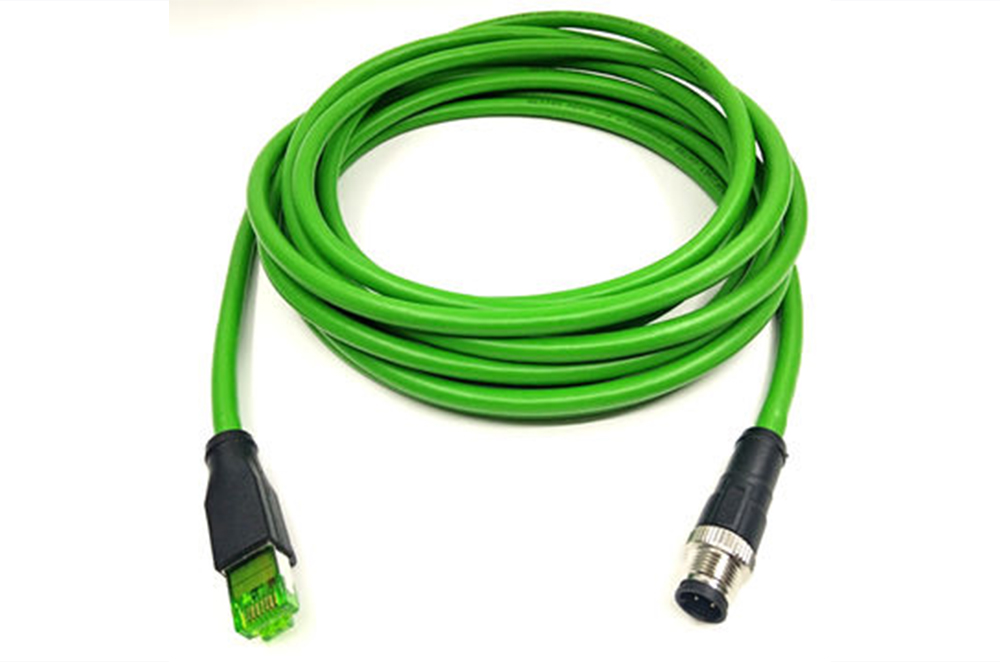

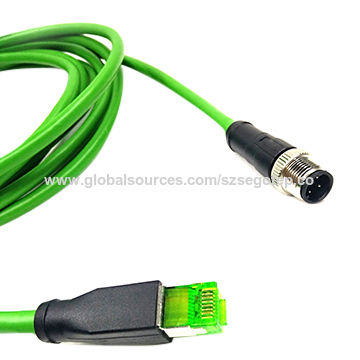

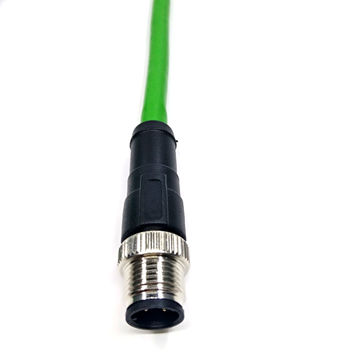

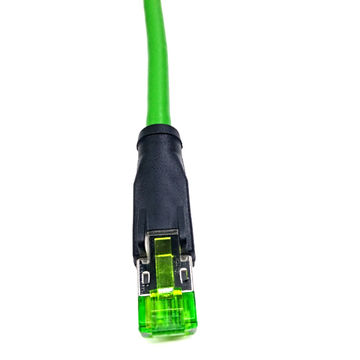

M12 Male  connector to Rj45 Adapter With UL Cable

M12 male female connector waterproof M12 sensor connector and cable made in China, waterproof connector IP68 protected from dust and water during immersion, resistant to many oils and chemical can be easily connected to proximity switches, photoelectric barriers, flow monitoring devices and field bus components sensor devices and actuator devices
Satisfy all the requirements of sensor devices and actuator devices in automation technology
M12 circular connector according to IEC 61076-2-101

Key specifications/special features:
- Coding: A, B, C, D, T, S, X
- Pins: 3, 4, 5, 8, 12 pins
- Stainless steel screw is available
- IP67/IP68, RoHS Directive-compliant, REACH, UL certified
- Generally description:
- Connector series: M12
- Gender: male, female
- Connector locking system: fix screw
- Connector design: panel mount
- Mechanical operation: >100 mating cycles
- Waterproof rating: IP67/IP68
- Ambient temperature: -45 to +85°C
- Materials:
- Connector body: PA66 + GF
- Contacts: brass/phosphorus copper with gold plated
- Screw/nut: brass with nickel plated
- Glue: black epoxy resin
- Waterproof 0-ring: FKM
- Wire jacket: PVC/PU
- Electrical data:
- Contact resistance: ≤5MΩ
- Insulation resistance: ≥100MΩ
