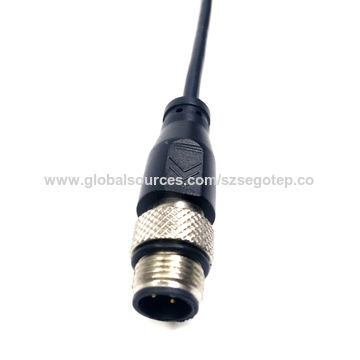

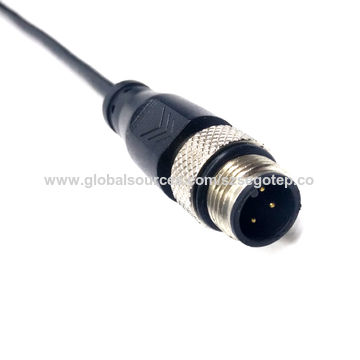

M12 A code Male Straight 3 Pin Aviation Connector Electrical with UL Cable2.jpgM12 A code Male Straight 3 Pin Aviation Connector Electrical with UL Cable3.jpgM12 A code Male Straight 3 Pin Aviation Connector Electrical with UL Cable4.jpg

Product Details

Model Number:TK02051

Brand Name:Totek

Origin:China (mainland)

Key Specifications/Special Features:

Key specifications/special features:


M12 male female connector waterproof M12 sensor connector and cable made in China, coding-A, B, C, D, T, S, X waterproof connector IP67/IP68 protected from dust and water during immersion, resistant to many oils and chemical can be easily connected to proximity switches, photoelectric barriers, flow monitoring devices and field bus components sensor devices and actuator devices
Satisfy all requirements of sensor devices and actuator devices in automation technology, commercial electronics PCBA, industrial safety light curtain, light grid, switches, M12 circular connector according to IEC 61076-2-101

Key specifications/special features:
- Coding: A, B, C, D, T, S, X
- Pins: 2, 3, 4, 5, 8, 12 pins
- Stainless steel screws are available
- IP67/IP68, RoHS Directive-compliant, REACH, UL certified
- Generally description:
- Connector series: M12
- Gender: female, male
- Connector locking system: fix screw or customized
- Connector design: Straight mount
- Mechanical operation: >100 mating cycles
- Waterproof rating: IP67/IP68
- Ambient temperature: -45 to +85°C
Materials:
- Connector body: PA66 + GF
- Contacts: brass/phosphorus copper with gold plated
- Screw/nut: brass with nickel-plated
- Glue: black epoxy resin
- Waterproof 0-ring: FKM
- Wire jacket: PVC/PU
- Electrical data:
- Contact resistance: ≤5MΩ
- Insulation resistance: ≥100MΩ
