Gold connector 90 degree micro usb cable

Gold connector 90 degree micro usb cable

Contact Now
DESCRIPTION Datasheet

Gold connector 90 degree micro usb cable





Micro usb brief introduction:



USB 2.0 cable ,micro USB cable ,USB charge cable



1.Cable:28AWG/1PR+24AWG/2C, 26AWG/2C, 28AWG/2C;



2.Conductor:Copper



3.Application:computer,kindle ,mobile charger





Micro usb Features:



1) Type:

 Micro USB cable

2) Connector:

Gold ,Nickel plated;

2) Conductor:

Pure Copper; Tinned Copper

4) Gauge:

30AWG,28AWG,26AWG optional;

5) Length:

0.5M,1.5M,2M,5M Customized;

6) Jacket color:

Beige, Black, Transparent;

7) Edition:

USB2.0, 3.0 Optional.





Micro usb Electrical:





1) 100% open & short test;

2)  Hi-Pot: DC 300V 10ms;

3)  Insulation Resistance: 10M OHM /300V Min;

4)  Contact Resistance: 0.01 OHM Max;

5)  Shield upon 95% braid;

6)  Working Temperature: -25oC ~ +85oC.





Micro usb Mechanical:





Over mold:

PVC 70Pa UL94V-0 Black;

Pre mold:

PE Low Density;

Contact:

Copper Alloy;

Insertion Force:

35 N Max;

Withdraw Force:

10 N Min.





Packing:



1)    Poly bag with sticker;

2)    Customized Gift box;

3)    Blister, bubble or slide blister available,1 pcs/PE bag, 300 bags in a carton.

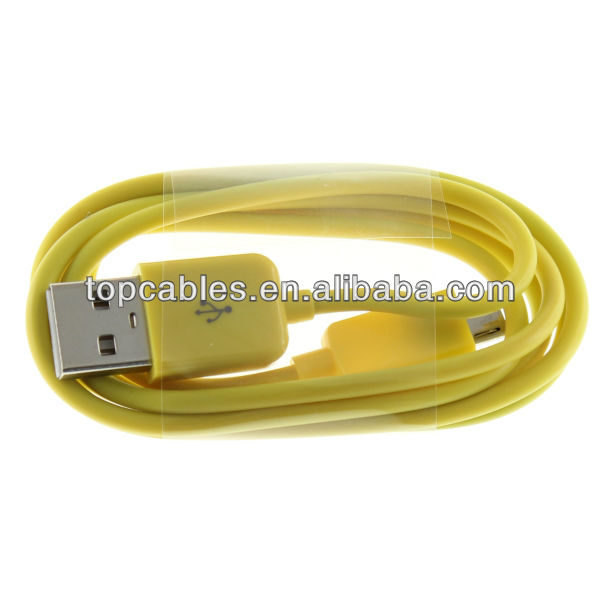

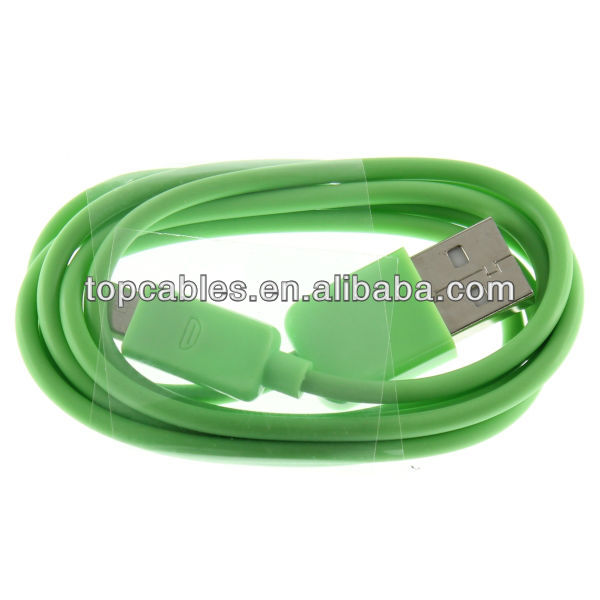

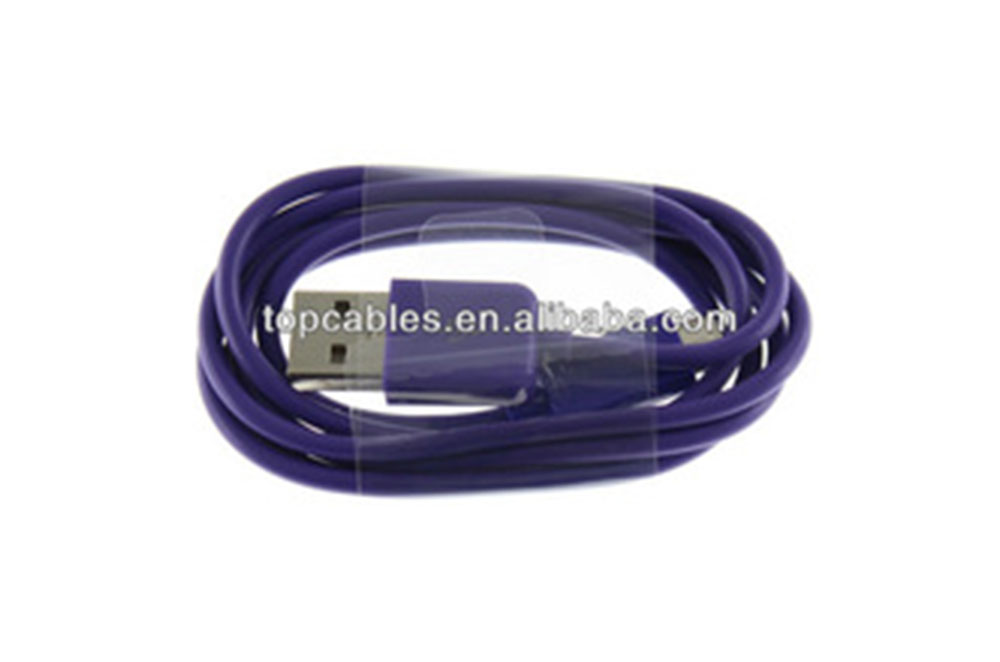

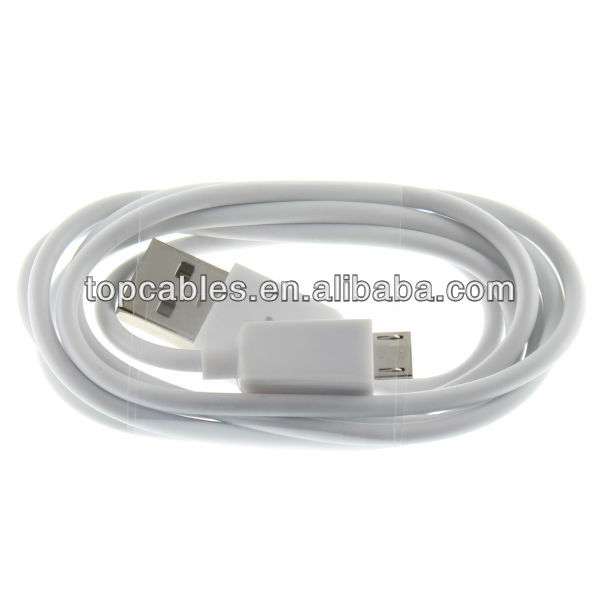

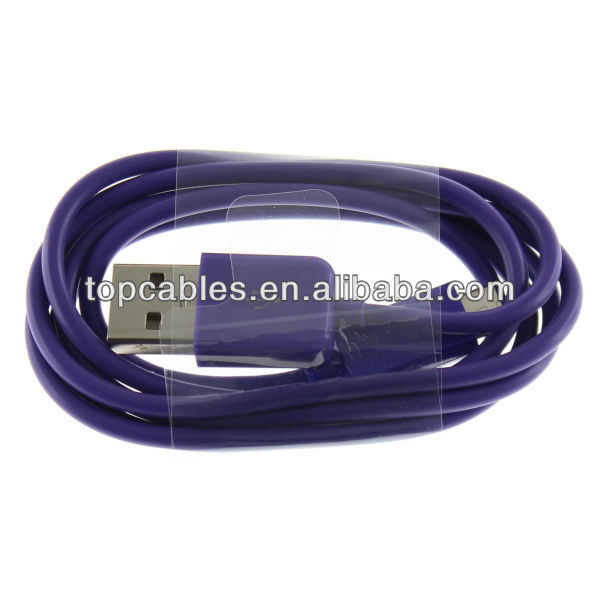

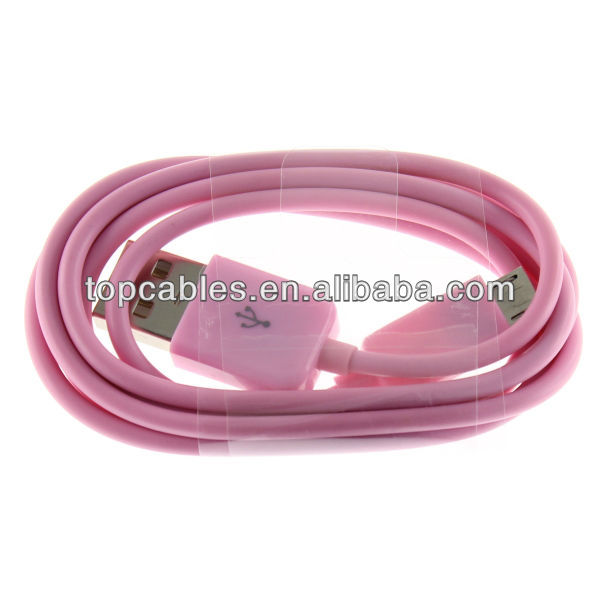

Detail photos:



mt2011122701-4[1].jpgmt2011122701-6[1].jpgmt2011122701-7[1].jpgmt2011122701-9[1].jpgmt2011122701-b[1].jpgmt2011122701-c[1].jpg
