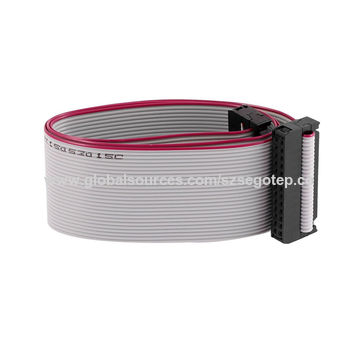

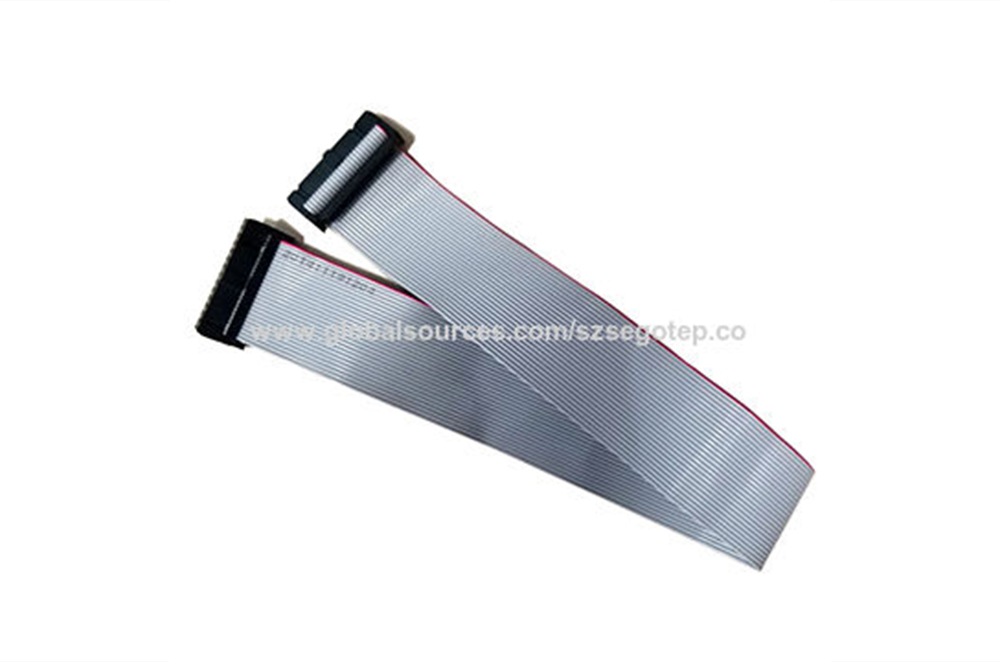

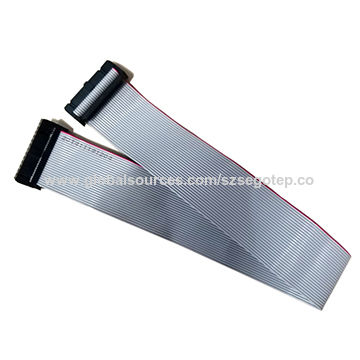

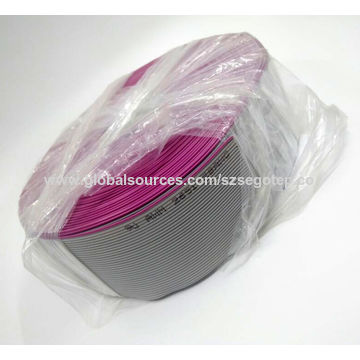

Flex flat 26pin ribbon wire cable for computer peripherals

Key specifications/special features:
Wire mold: UL2651
Cable pitch range: 0.4mm, 0.635mm, 1.0mm, 1.27mm
Connector pitch range: 2.54mm
Conductor range: 24-30AWG
Connector pins: 6-40P, 6-50P, 6-64P
Cable color: grey with red edge or grey with blue edge or black with white edge
Connector color: usually black, grey & red
Cable length: 10cm, 15cm, 30cm or customized
Applications: computer/desktop data transfer, power transfer, electronics, communication data transfer
Certified: hook up wire, UL, VDE, CSA
Material: SORY standard PBT
Terminals: bronze and phosphor bronze
Connector: gold-plated/nickel-plated
Rated current: 1A
Maximum voltage: AC 500V/1 minute
Insulation resistance: 1000mΩ
Contact resistance: 15mΩ
Operating temperature: -40°C - +105°C

Advantages:

1. RoHS materials
2. UL conform
3. Professional & experienced engineers
4. Competitive price
5. On-time service
6. 3 years' product warranty
7. More than 16 years of experience
8. High technology
9. Lead time: 3-5 days
10. Offer technology support
11. Small quantity order is accepted
12. OEM/ODM services provided
