factory direct wholesale high quality cable usb mini,AM to mini,28 AWG with AL-Foil+Braid best suit for cable distributor
USB 2.0 cable ,USB AM cable,USB mini cable
1.Cable:28AWG/1PR+24AWG/2C, 26AWG/2C, 28AWG/2C;
2.Conductor:Copper
3.Application:computer,kindle ,mobile charger,fax
Description:
| 1.USB Cable 2.0; |
| 2.High speed USB2.0 cable; |
|
one 28awg twisted pair(data )plus two power conductors; |
| 3.Overall shield: overall aulminized polyester shield with drain wire pus tinned copper braid shield. |
Features:
| Type: | USB(AM) TO Mini; |
| Connector: |
Nickel plated; |
| Conductor: |
pure copper; |
| Gauge: | 30AWG,28AWG,26AWG optional; |
| Length: | 3ft.5ft,10ft,15ft,optional |
| Jacket color: | Beige,Black,Transparent; |
| Edition: | USB2.0,3.0 Optional. |
Electrical:
| 1) 100% open & short test; |
| 2) Hi-Pot: DC 300V 10ms; |
| 3) Insulation Resistance: 10M OHM /300V Min; |
| 4) Contact Resistance: 0.01 OHM Max; |
| 5) Shield upon 95% braid; |
| 6) Working Temperature: -25oC ~ +85oC. |

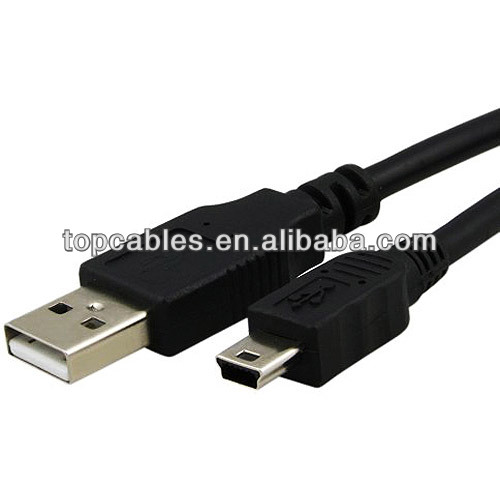

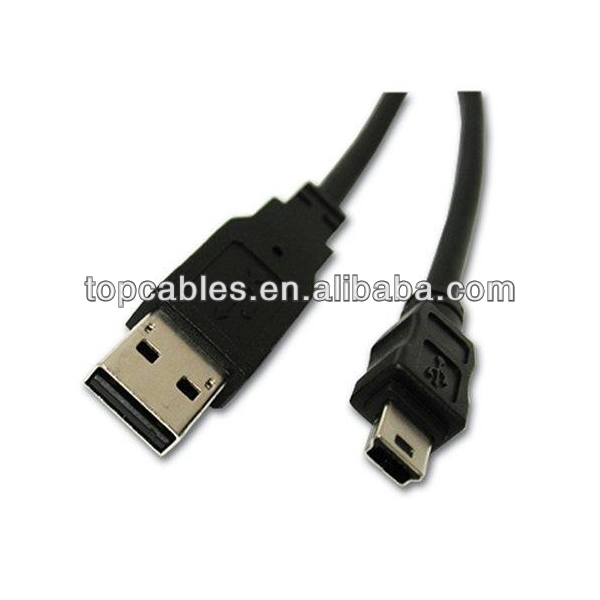

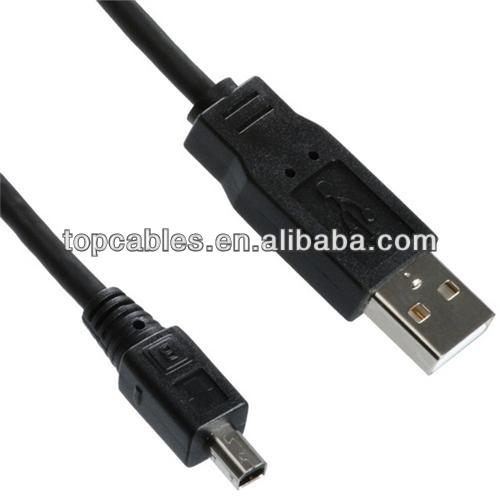

Detail photos:
![0075712027329_500X500[1].jpg](/Data/totekinternational/upload/image/20181114/6367779040135009646238185.jpg "0075712027329_500X500[1].jpg")
![cable-usb-type-a-vers-mini-cable-1m[1].jpg](/Data/totekinternational/upload/image/20181114/6367779040171022686478476.jpg "cable-usb-type-a-vers-mini-cable-1m[1].jpg")
![usb-mini-4pin-cable-3-ft[1].jpg](/Data/totekinternational/upload/image/20181114/6367779040204053727989892.jpg "usb-mini-4pin-cable-3-ft[1].jpg")
