factory direct hot supply micro usb to vga cable





Micro usb to vga cable Features:



1)Micro USB to VGA cable

2)High speed USB2.0 cable( compliant with USB1.1,USB2.0,USB3.0);

one 28awg twisted pair(data )plus two power conductors;

3)  Overall shield: overall aulminized polyester shield with drain wire pus tinned copper braid shield.





Micro usb to vga cable specification:



Micro USB MHL to VGA Adapter Cable with 3.5mm Stereo Audio for Samsung Galaxy S II / i9100 / Note i9220 Other MHL Devices, Support Full 1080P



1) The MHL Micro USB male to VGA female adapter is ideal for connecting your Tablet, Smartphone or other MHL enabled device to an VGA monitor using your VGA cable.

2) 5-pin Micro-USB connection to your smart phone

3) Connect MHL adapter to TV/Monitor with VGA cable

4) Listen to stereo sounds by connecting audio adapter with 3.5mm audio cable

5) Watch movies and charge your device simultaneously by connecting additional micro-USB cable to power source

6) Connectors: 5-pin micro-USB male (connect to device) / VGA female / 3.5mm audio female / micro-USB female (connect to power source)

7) Built-in MHL receiver converts MHL signal to analog VGA video and 2ch analog audio

8) MHL input resolution support from 25MHz-75MHz, up to 1080P@24/30Hz





Micro usb to vga cable electrical:





1) 100% open & short test;

2)  Hi-Pot: DC 300V 10ms;

3)  Insulation Resistance: 10M OHM /300V Min;

4)  Contact Resistance: 0.01 OHM Max;

5)  Shield upon 95% braid;

6)  Working Temperature: -25oC ~ +85oC.





Micro usb to vga cable mechanical:





Over mold:

PVC 70Pa UL94V-0 Black;

Pre mold:

PE Low Density;

Contact:

Copper Alloy;

Insertion Force:

35 N Max;

Withdraw Force:

10 N Min.





Packing:



1)    Poly bag with sticker;

2)    Customized Gift box;

3)    Blister, bubble or slide blister available,1 pcs/PE bag, 300 bags in a carton.

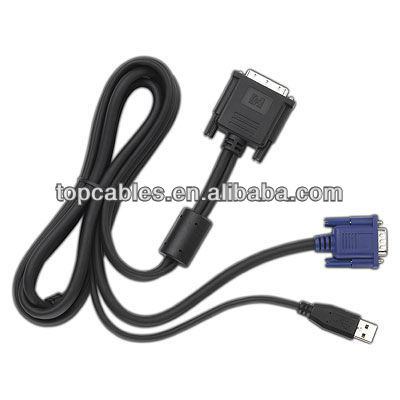

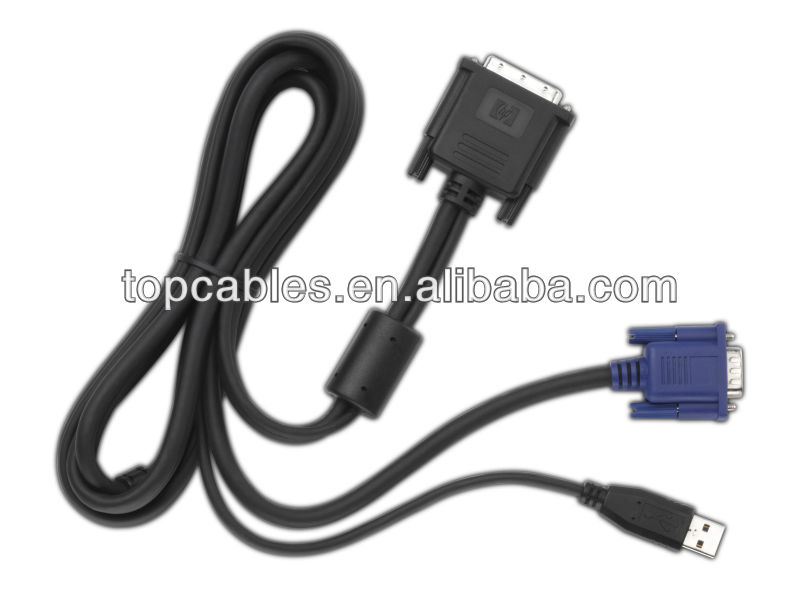

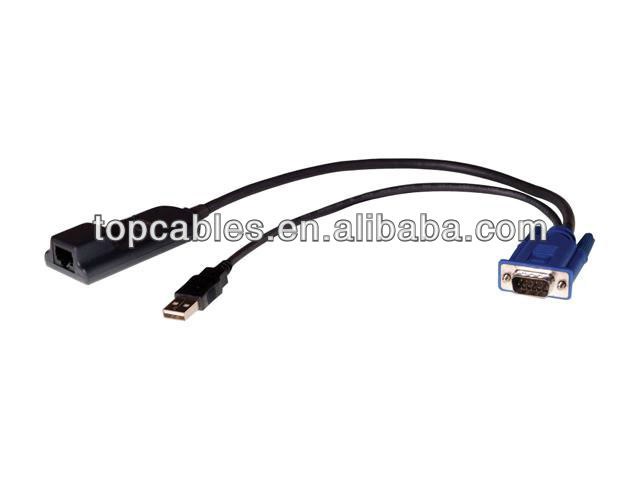

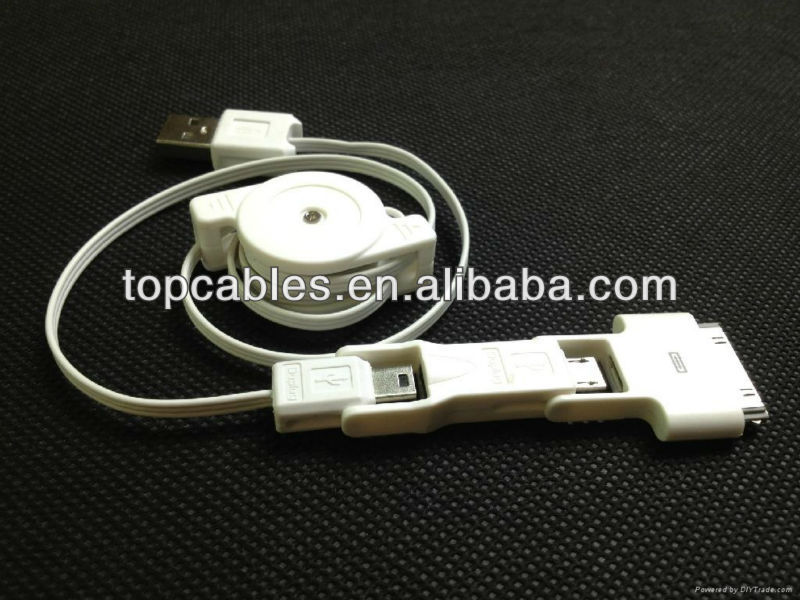

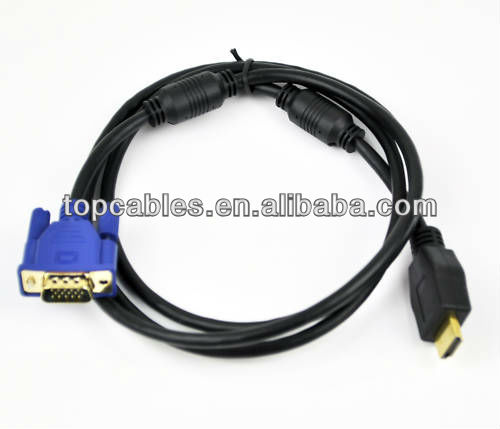

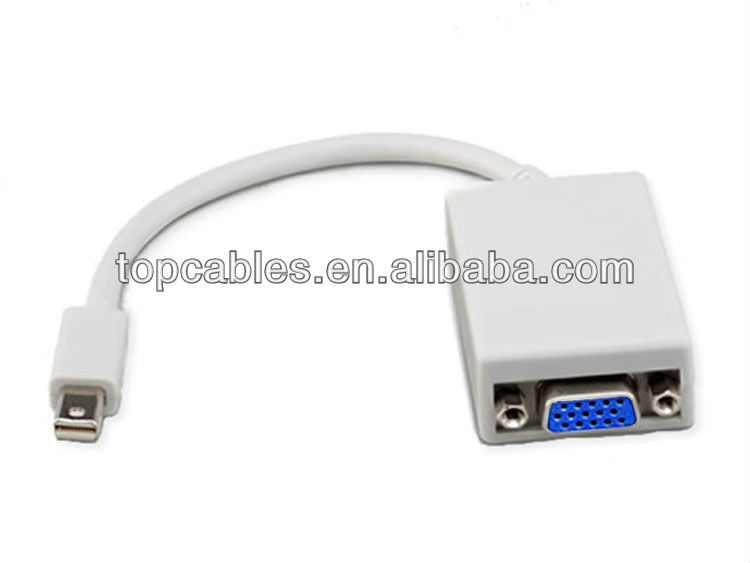

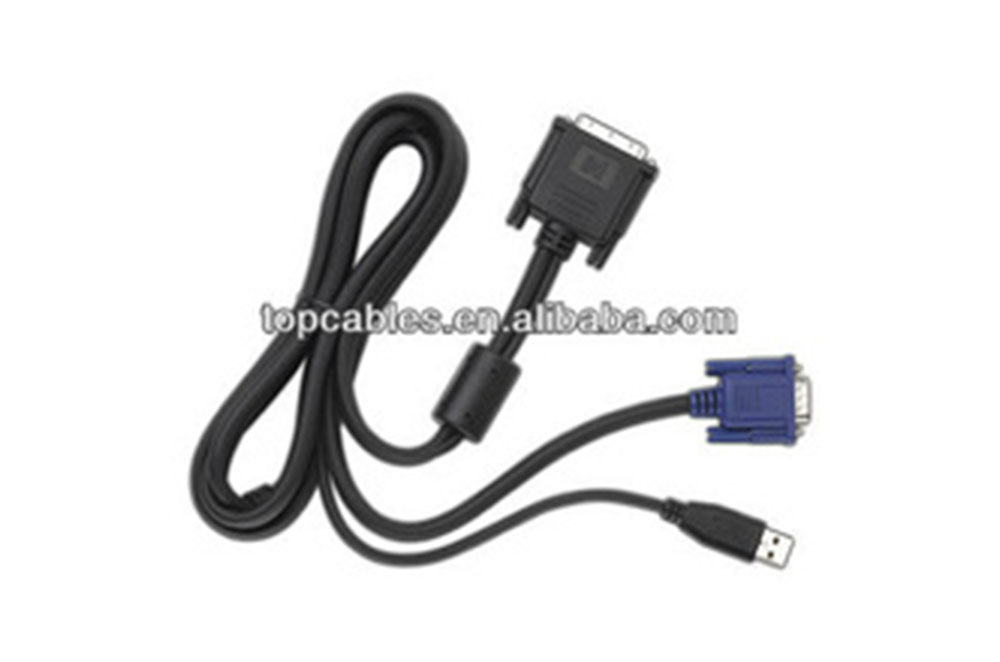

Detail photos:
