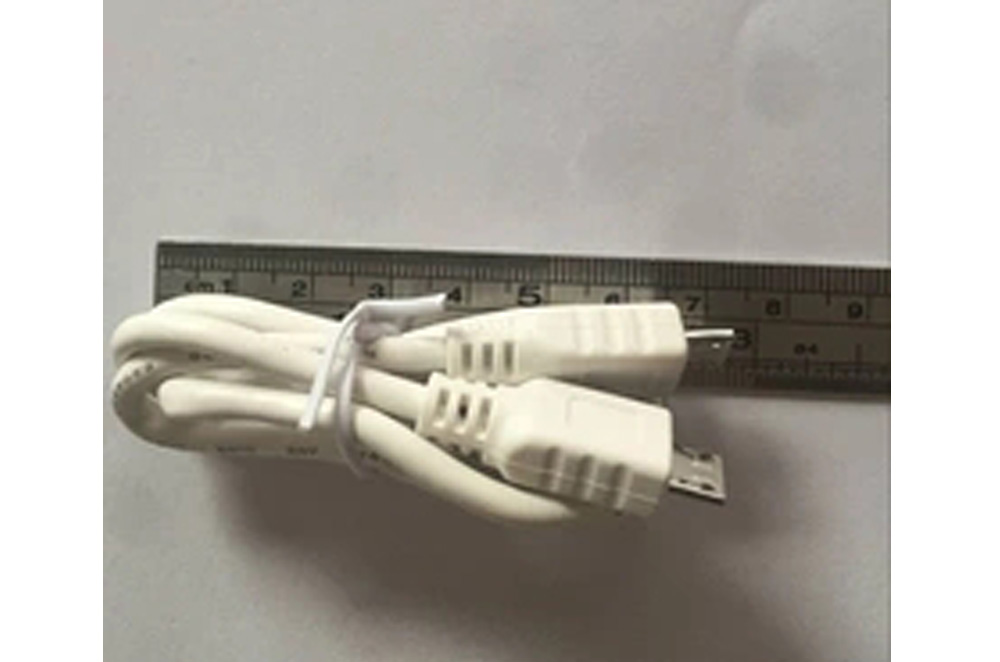

Customized short white Micro USB to Micro USB OTG cable
Electrical:
| 100% open & short test | ||
| Voltage : 300V DC, 5MΩ/10ms | ||
| Insulation Resistance: 10M OHM /300V Min. | ||
| Contact Resistance: 0.01 OHM Max. | ||
| Shield up to 65% braid. | ||
| Working Temperature: -25 ° ~ +80 ° |
Mechanical:
| Over mold: PVC 70Pa UL94V-0 |
| Pre mold: PE Low Density |
| Contact: Copper Alloy. |
| Insertion Force: 35 N Max. |
| Withdraw Force: 10 N Min |

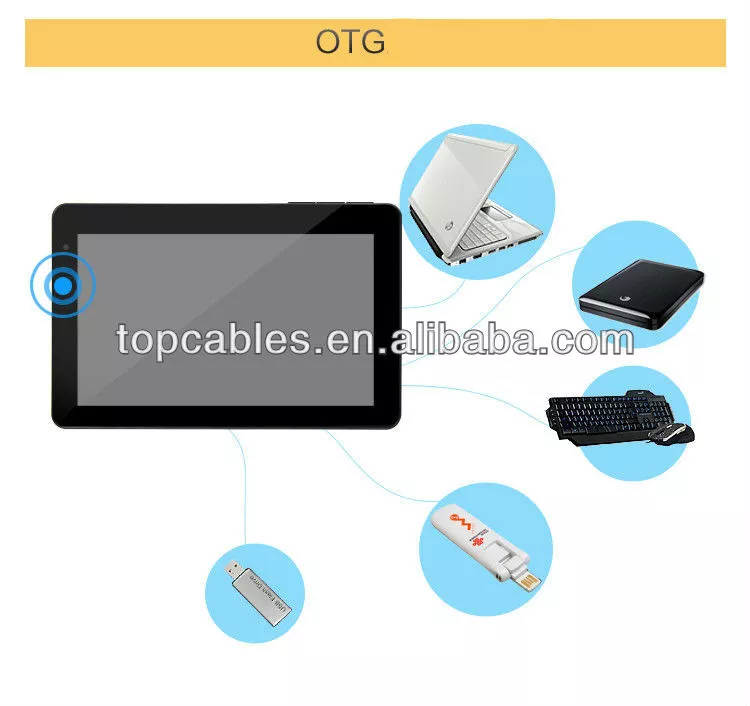

Application:
1.Removable hard drives
2.Flash drives
3.High-end video and imaging devices
4.Portable devices, camera, recorder and mobile phone
5.High-resolution printer/scanner
6.Video game consoles

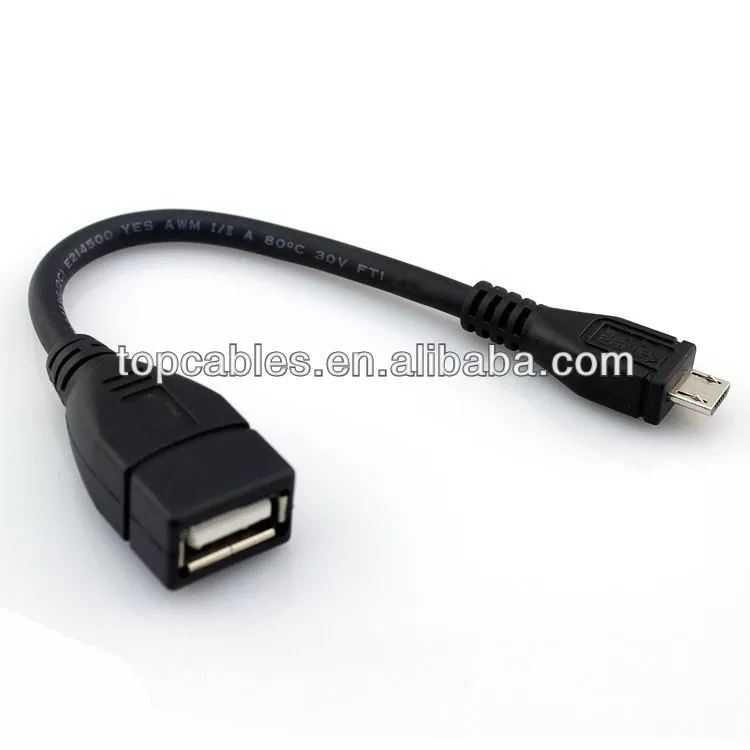

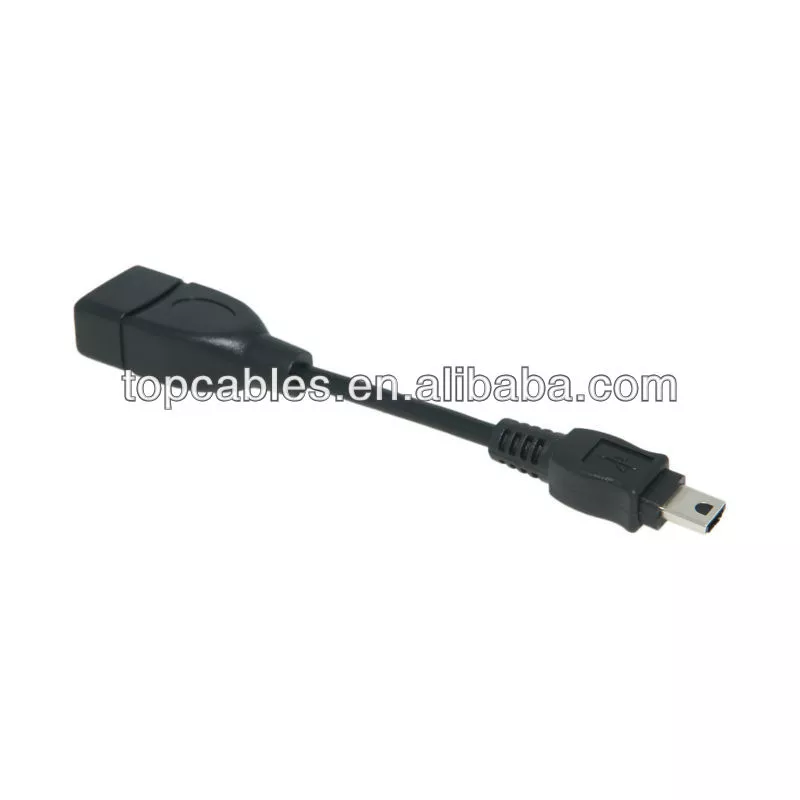

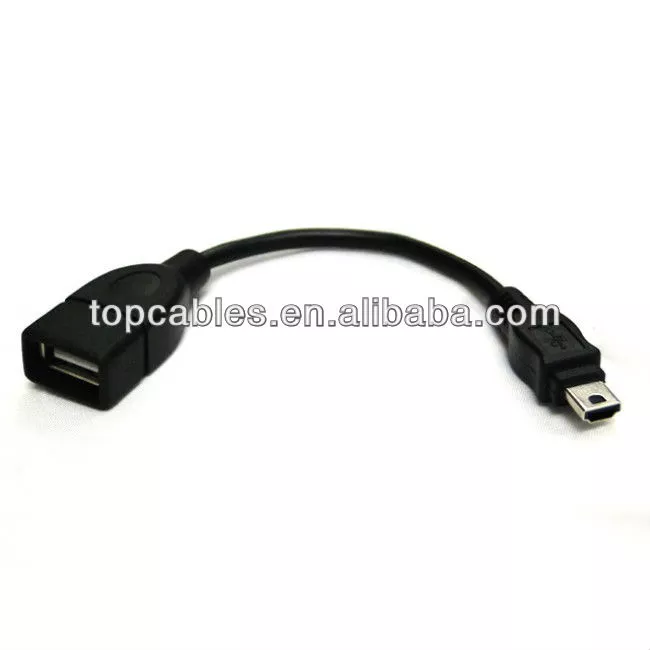

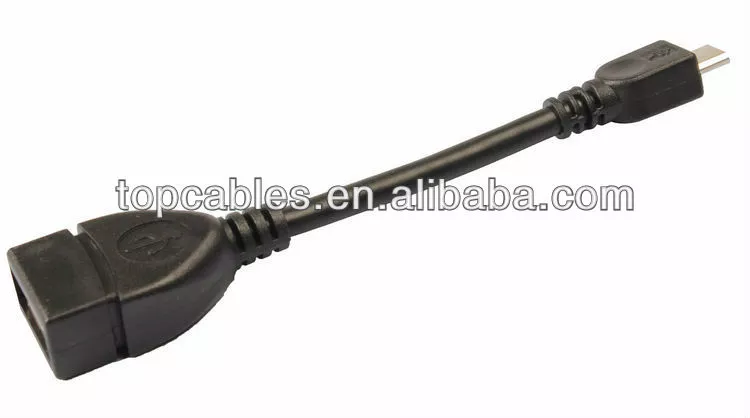

Detail photos:
