Product Details

Model Number:TK02101

Brand Name:Totek

Origin:China (mainland)

Key Specifications/Special Features:

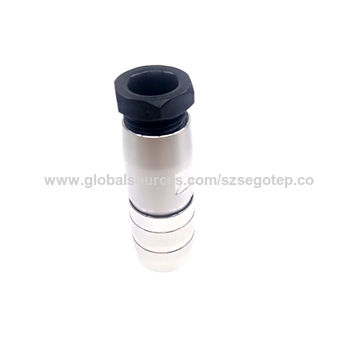

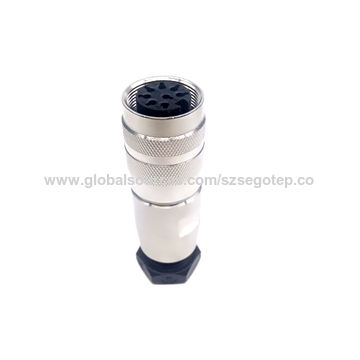

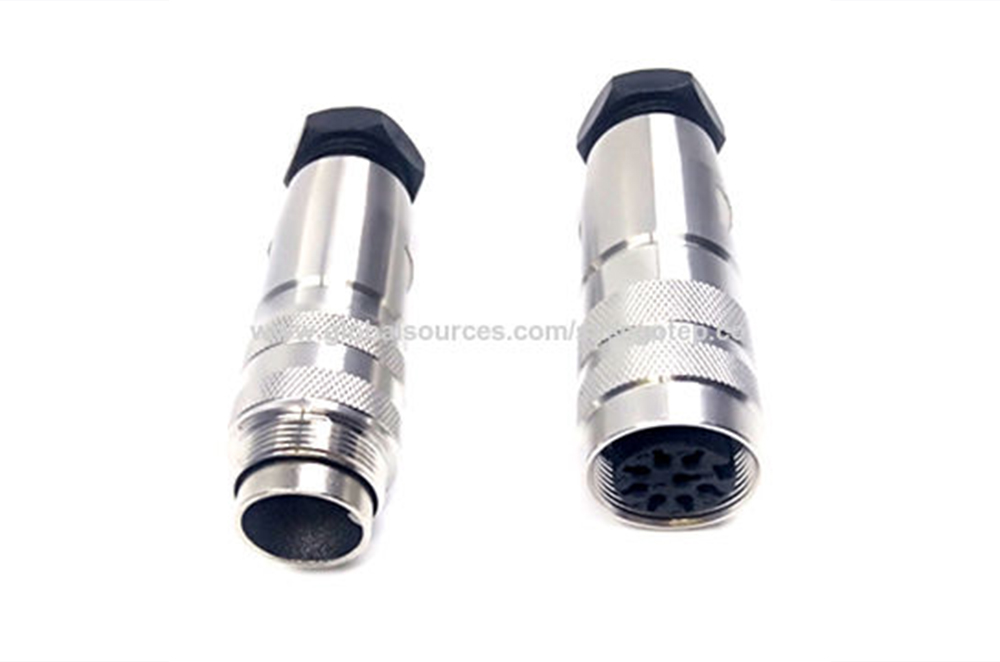

 AISG male  to female solder type 14 pin connector for 6 to 8mm diameter cable

Key specifications/special features:
Connector series: M16
Gender: male, female
Locking type: fix screw
Mounting type: straight
Refers to coding type
Refers to pins number
X refers to cable specification

 Pin 2/3/4/5 pins-a/5 pins-b/6/7 pins-a/7 pins-b/8 pins
 Standard IEC 61076-2-106
 Ambient temperature -25 to +70°C
 Connector insert PBT
 Connector screw/body Brass with nickel-plated
 Coupling screw PA+GF
 Connector contacts Brass with gold-plated
 Seal/O-ring NBR/FKM
 Insulation-resistance ≥ 100MΩ
 Contact-resistance ≤ 5mΩ
 Shielded Available/unavailable
 Suitable cable Dia PG7: 4-6mm
 PG9: 6-8mm
 IP rating IP67 in locked condition

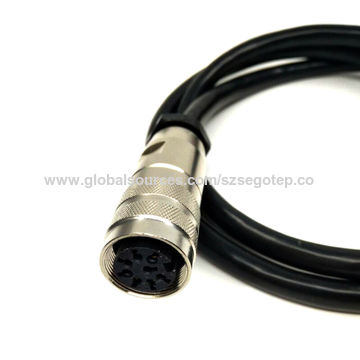

This AISG cable is used to feed data and power from the controller to the Remote Electrical Tilt (RET) system components.

Features:
Compatible with AISG connectors
Outdoor IP67 compliant
Flame retardant, Polyurethane jacket
Up to 100% humidity

Applications:
Remote electrical tilt (RET) applications
AISG compliant antenna control units
Tower mount amplifiers with AISG interface
Control Network interfaces with AISG interface
