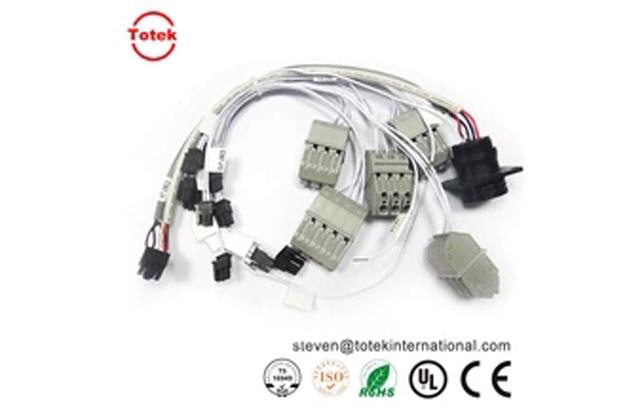

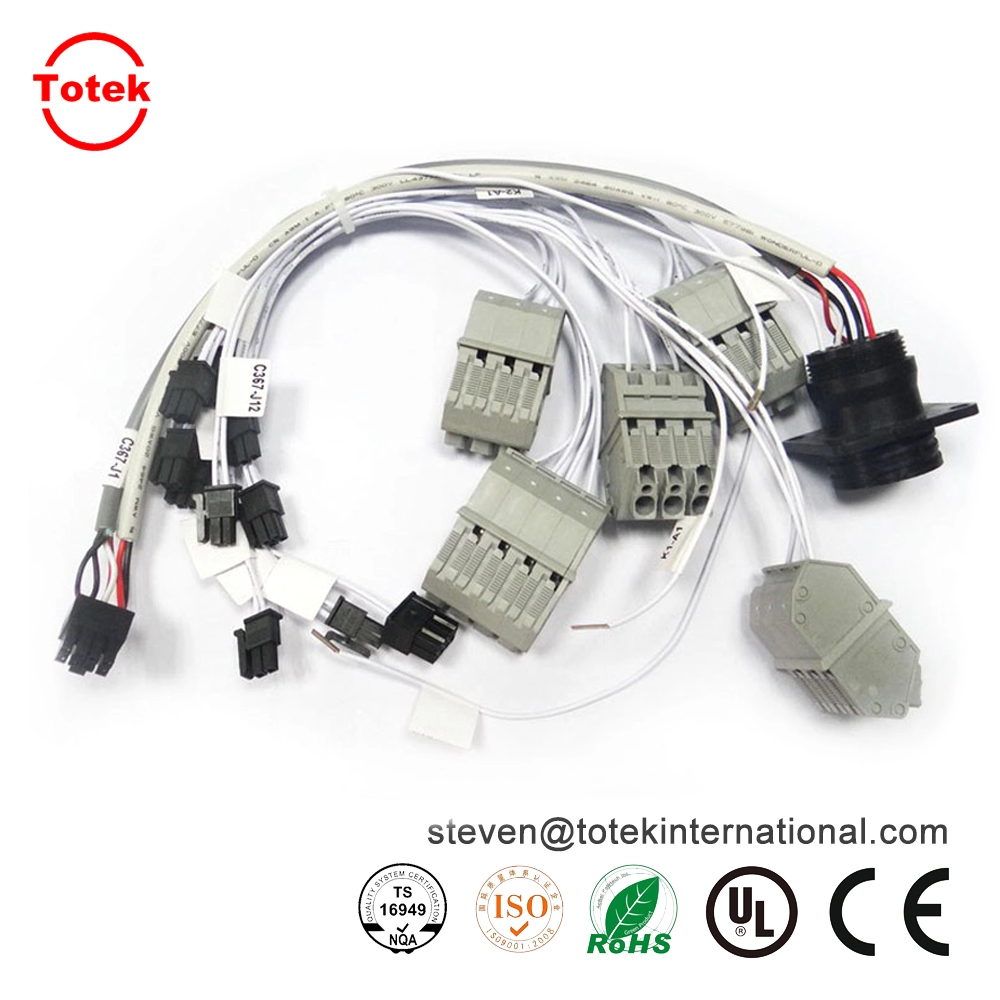

Tailor make wire harness cable with WAGO connectors
We supply the cable assembly to your specification of the received AutoCAD drawings.
Feature:
This LVDS cable made of UL2110 halogen-free cable. The core cable is shielded with 90% of copper wire and mylar for shielding purpose. The core cable consists of 10 twisted pair and 7 single wires. Both ends have crimped terminals. One end connects to a 1.0mm pitch standard LVDS housing, while the other end connect to a 2-row housings and a ring-type terminal. It is suitable for high-speed digital image and low power consumption transmission by LVDS (Low Voltage Differential Signaling) method. This cable uses for LCD panels and cable assemblies for panel-to-panel main board connections.
Product name | WAGO terminals wire harness cable |
Connectors Type | WAGO |
Length | Custom length |
Standard | WAGO |
Application | To be applied in lighting system |
Conductor Material |
Copper, Aluminum, CCAM, CCA, CCS etc |
Insulation Material |
Rubber, Silica gel, PE, PVC, Teflon or as per customer request |
Precision and fine wire connector
Optional Housing pin
Optional Wire gauge
Length can be customized
Male to Female cable
Application: All kinds of Wiring Harness for Electronic Device.
