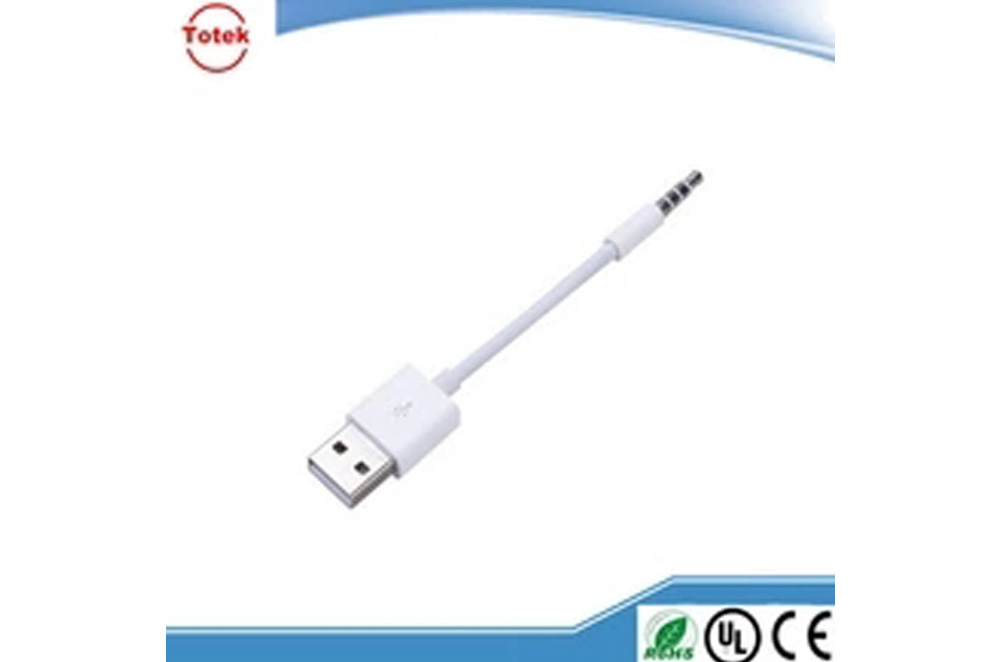

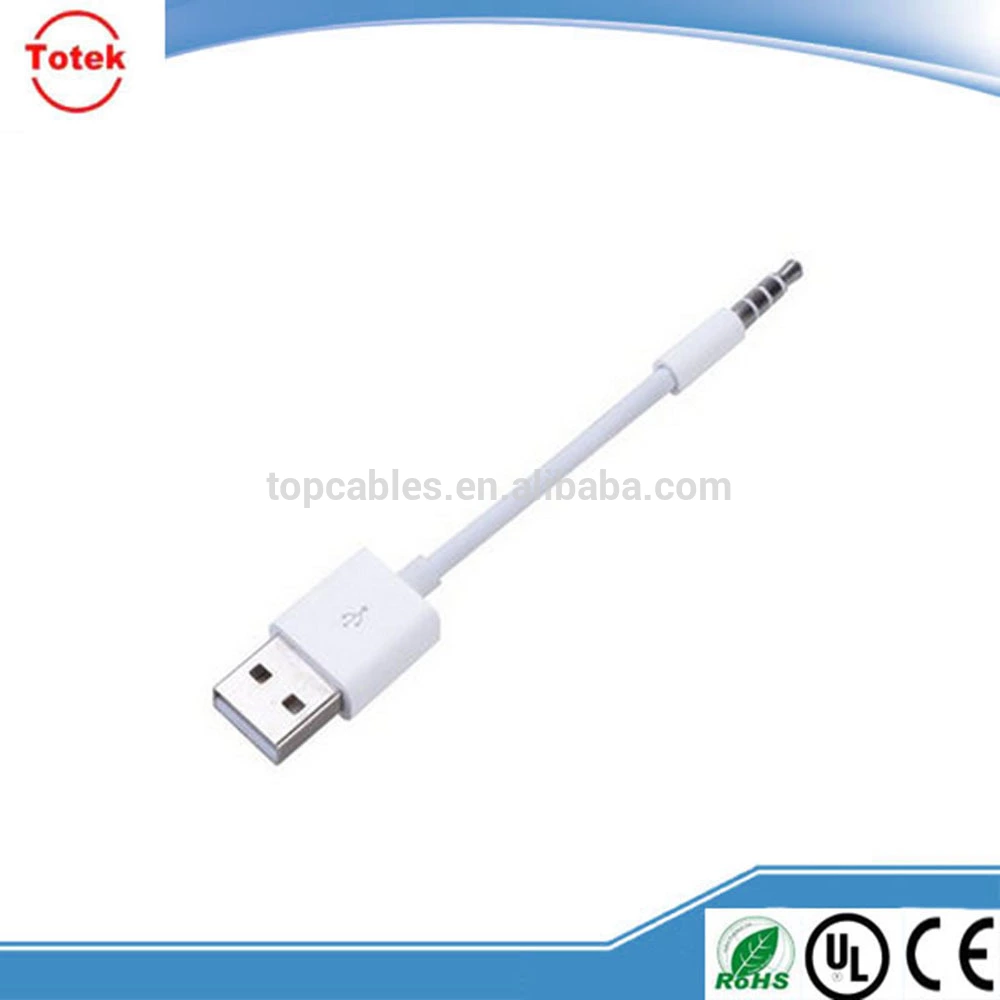

Detailed Description of 3.5mm male aux audio plug jack to usb 2.0 female usb cable:

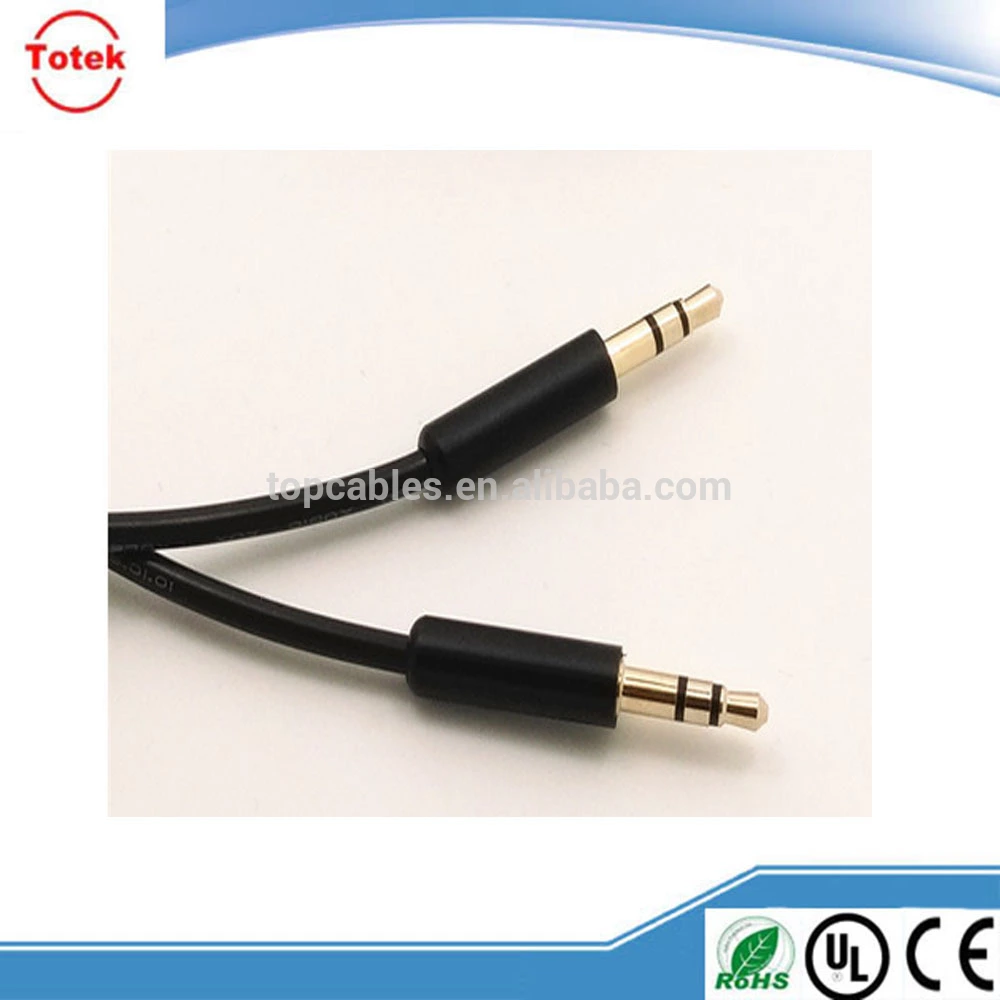

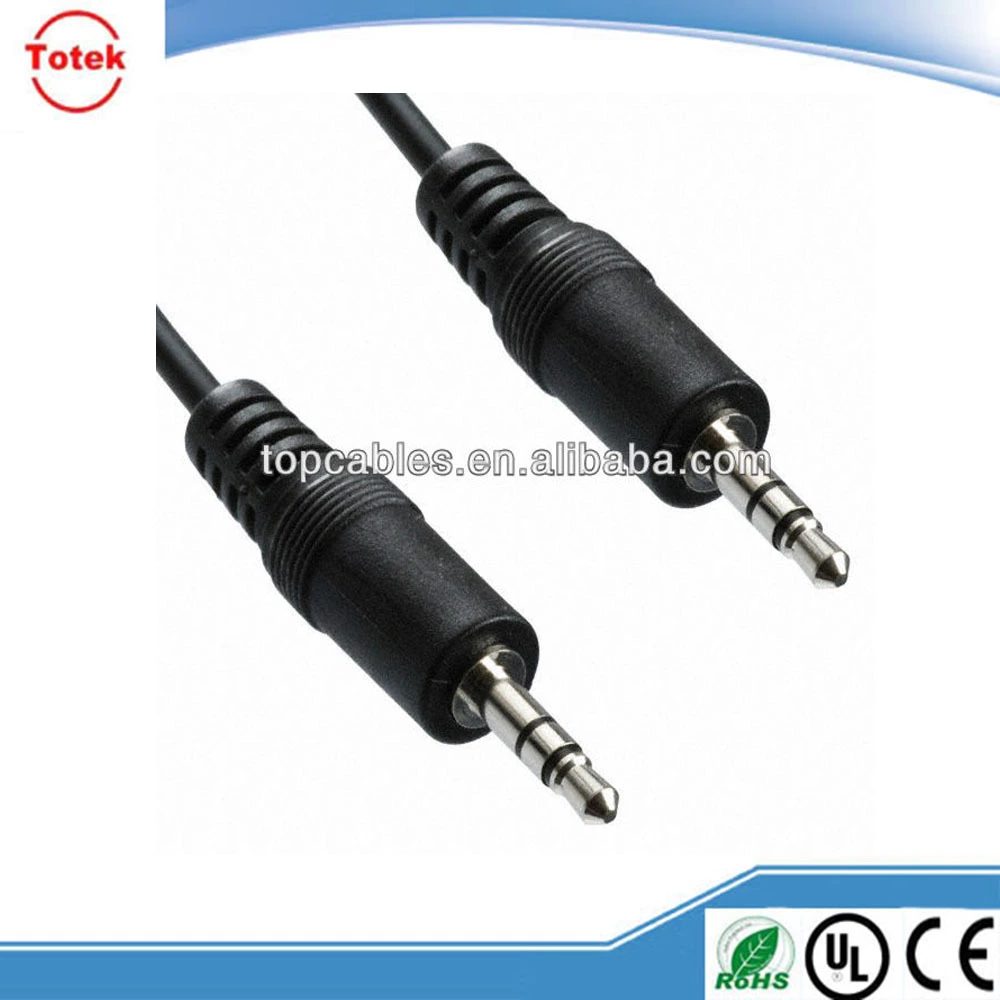

- Connectors: Stereo plug 3.5mm male to male
- Fully molded connectors provide excellent strain relief.
- High-quality cable with shield reduces unwanted noise and distortion.
- Gold-plated or nickel-plated stereo connectors give you solid corrosion-free contact.
- Easy installation and convenient to carry
- Improves digital signal delivery as compared to standard stereo type audio cables.
- True digital signal maintained by high quality materials and connectors.
- High-density double shielding for maximum rejection of EMI and RFI.
Electrical Data of 3.5mm male aux audio plug jack to usb 2.0 female usb cable:
- 100% open & short test;
- Insulation Resistance: 10M OHM /300V Min;
- Contact Resistance: 0.01 OHM Max;
- Shield upon braid;
- Working Temperature: -25℃ ~ +85℃.
Mechanical Data of 3.5mm male aux audio plug jack to usb 2.0 female usb cable:
- Over mold: PVC 80Pa, UL94V-0 Black or white;
- Contact: Copper Alloy;
- Insertion Force: 35 N Max;
- Withdraw Force: 10 N Min.
Picture Showcase
