1m USB A Male to B Female panel mount + screw extension cable

1m USB A Male to B Female panel mount + screw extension cable


1m USB A Male to B Female panel mount + screw extension cable

Description:

1) The best price and high quality usb cable panel mount type B
2) High speed 2.0 cable( compliant with USB1.1,USB2.0); one 28awg twisted pair(data )plus two power conductors;
3) Overall shield: overall aulminized polyester shield with drain wire pus tinned copper braid shield.




Wire structure:

Signal Conductor
28AWG (7/0.12) BC
Insulation 0.9=0.05MM, PE (202-3364), white/green
Conductor 28AWG~20AWG (7/0.12~0.30) BC
Shield Aluminium foil
Ground Wire 28AWG (7/0.12) BC
Braided Wire 16/50.10BC
Jacket PVC





Features:

1)  Type:
professional make high quality usb cable panel mount
2)  Connecor:  Gold/Nickel plated
2)  Conductor: Pure Copper/Tinned Copper
4)  Gauge: 30AWG,28AWG,26AWG optional;
5)  Length: 0.5M,1.5M,2M,5M Customized;
6)  Jacket color: Beige,Black,Transparent,white;
7)  Edition: 1.1/2.0 Version Optional.



•Guarantees 100% compliance with current USB specifications.
•Molded-strain relief construction for flexible movement, durability, and fit.
•Reduces cross talk and interference with aluminum undermold contact.
•Complies with fully rated cable specification using braid-and-foil shield protection.
•Power strands are 24AWG x 2, data strands are 28AWG x 2.

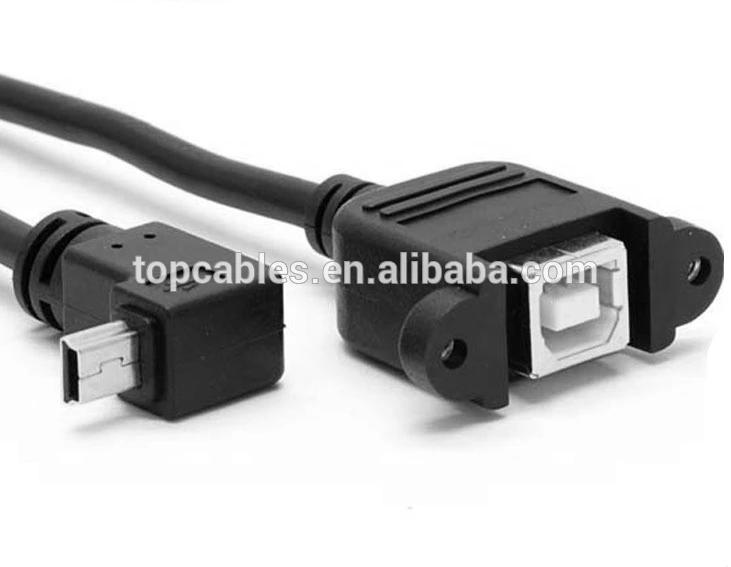

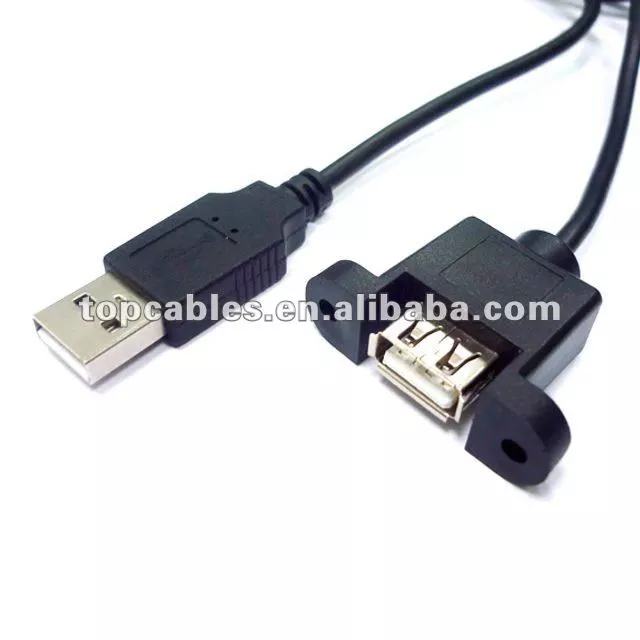

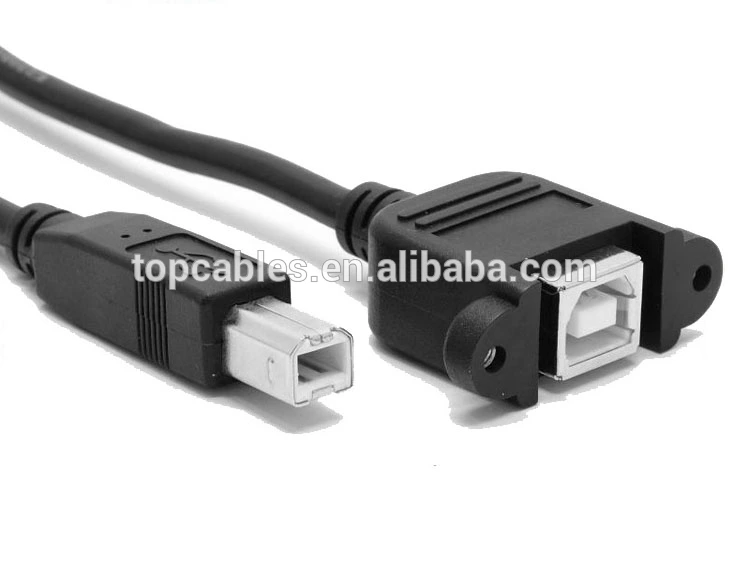

 Detail pictures:

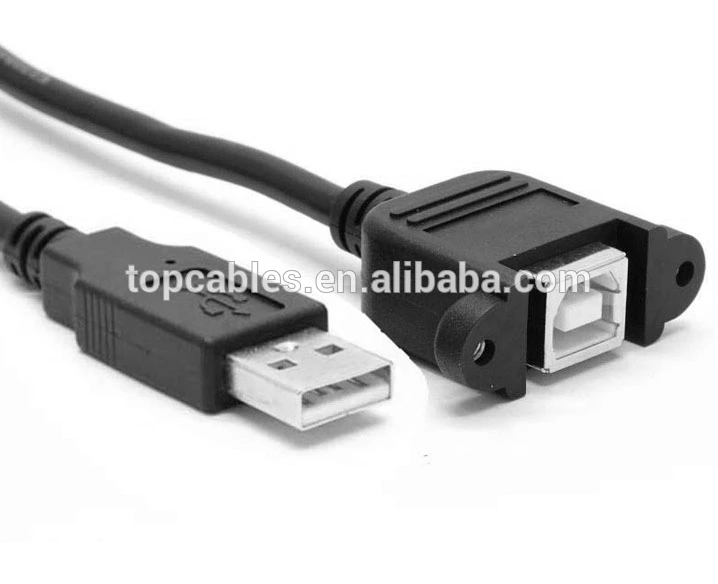

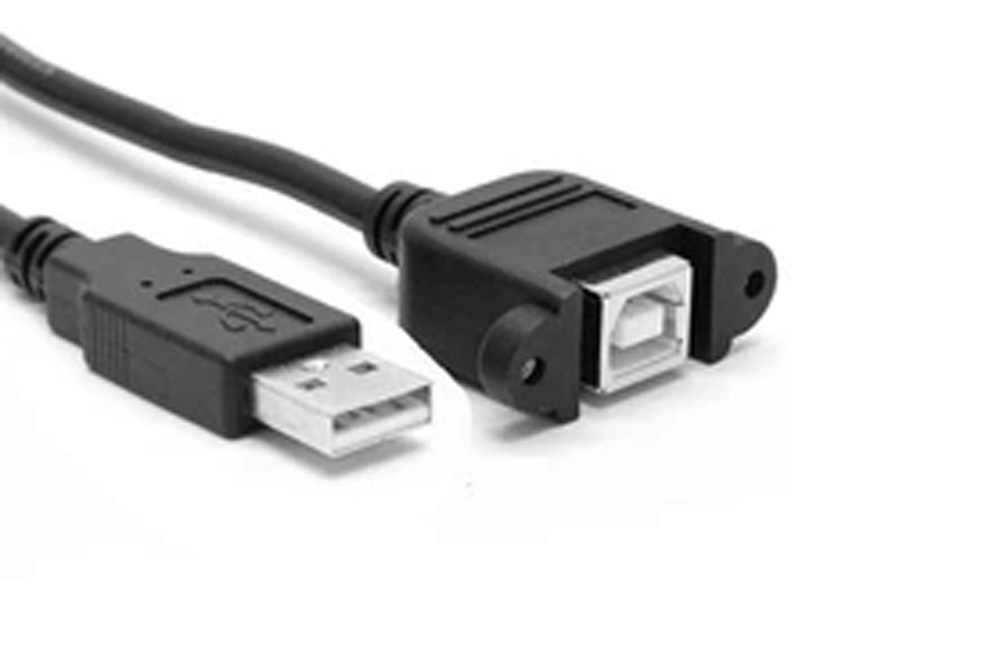

1m USB A Male to B Female panel mount + screw extension cable

1m USB A Male to B Female panel mount + screw extension cable1m USB A Male to B Female panel mount + screw extension cable1m USB A Male to B Female panel mount + screw extension cable
