1m dual port usb 2.0 to 10 pin internal mainboard connector cable

1m dual port usb 2.0 to 10 pin internal mainboard connector cable

Contact Now
DESCRIPTION Datasheet


1m dual port usb 2.0 to 10 pin internal mainboard connector cable

Description:

1) The best price and high quality usb cable panel mount type A
2) High speed 2.0 cable( compliant with USB1.1,USB2.0); one 28awg twisted pair(data )plus two power conductors;
3) Overall shield: overall aulminized polyester shield with drain wire pus tinned copper braid shield.




Wire structure:

Signal Conductor
28AWG (7/0.12) BC
Insulation 0.9=0.05MM, PE (202-3364), white/green
Conductor 28AWG~20AWG (7/0.12~0.30) BC
Shield Aluminium foil
Ground Wire 28AWG (7/0.12) BC
Braided Wire 16/50.10BC
Jacket PVC





Features:

1)  Type:
professional make high quality usb cable panel mount
2)  Connecor:  Gold/Nickel plated
2)  Conductor: Pure Copper/Tinned Copper
4)  Gauge: 30AWG,28AWG,26AWG optional;
5)  Length: 0.5M,1.5M,2M,5M Customized;
6)  Jacket color: Beige,Black,Transparent,white;
7)  Edition: 1.1/2.0/3.0 Version Optional.



•Guarantees 100% compliance with current USB specifications.
•Molded-strain relief construction for flexible movement, durability, and fit.
Reduces cross talk and interference with aluminum undermold contact.
•Complies with fully rated cable specification using braid-and-foil shield protection.
•Power strands are 24AWG x 2, data strands are 28AWG x 2.

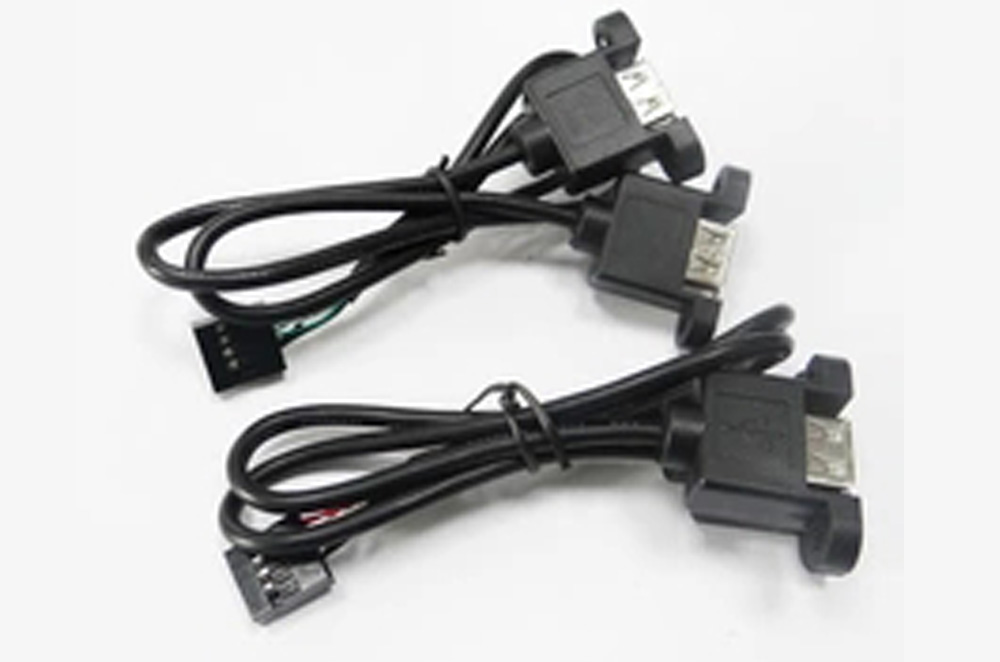

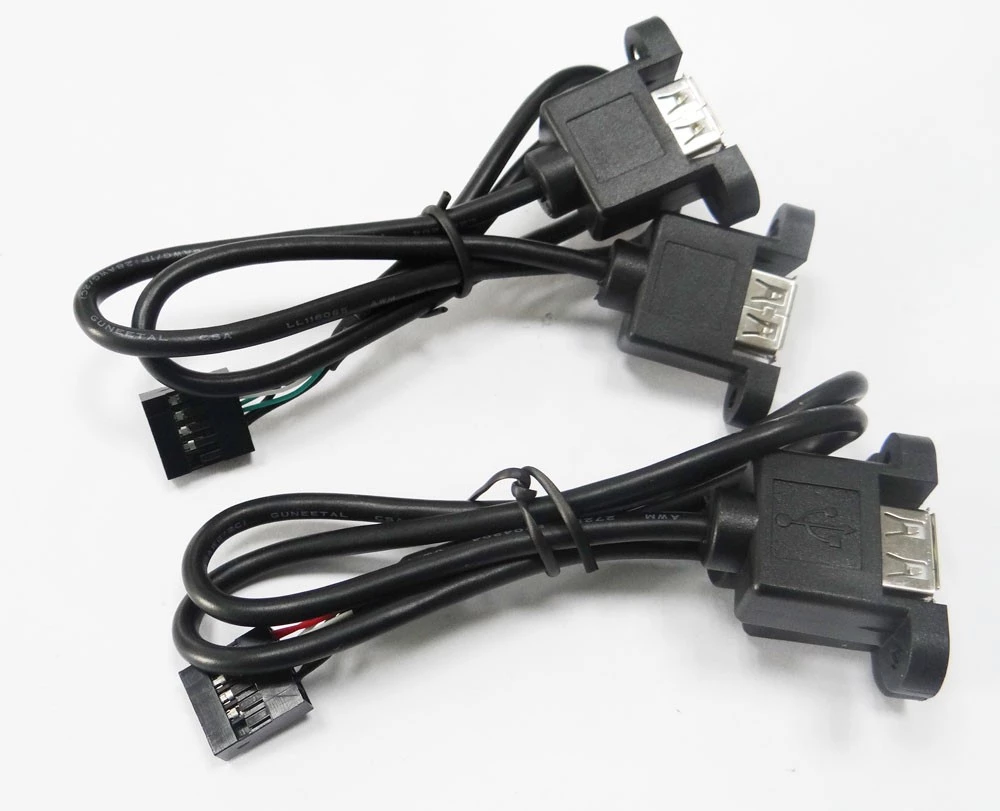

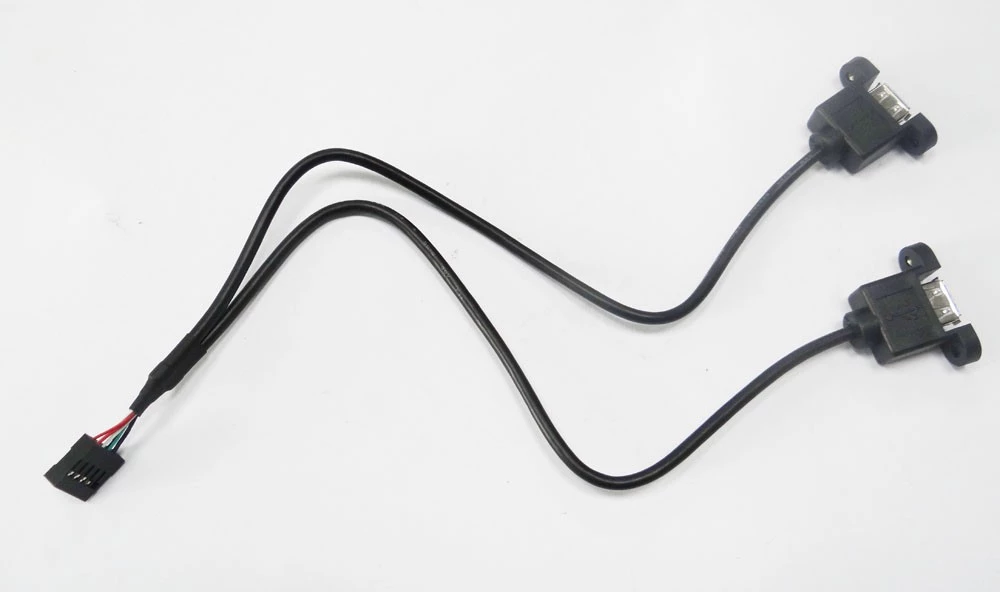

 Detail pictures:

1m dual port usb 2.0 to 10 pin internal mainboard connector cable1m dual port usb 2.0 to 10 pin internal mainboard connector cable
