16-pin IDC cable 1.27mm with 2.54mm female connector.jpg16-pin IDC cable 1.27mm with 2.54mm female connector2.jpg16-pin IDC cable 1.27mm with 2.54mm female connector3.jpg

Product Details

Model Number:TK02010

Origin:China (mainland)

Key Specifications/Special Features:

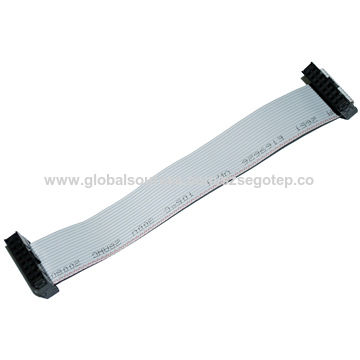

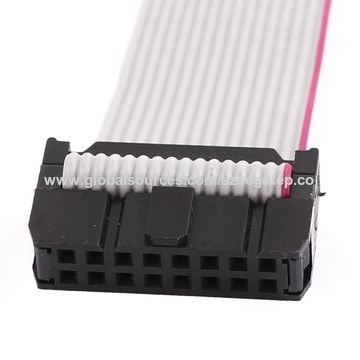

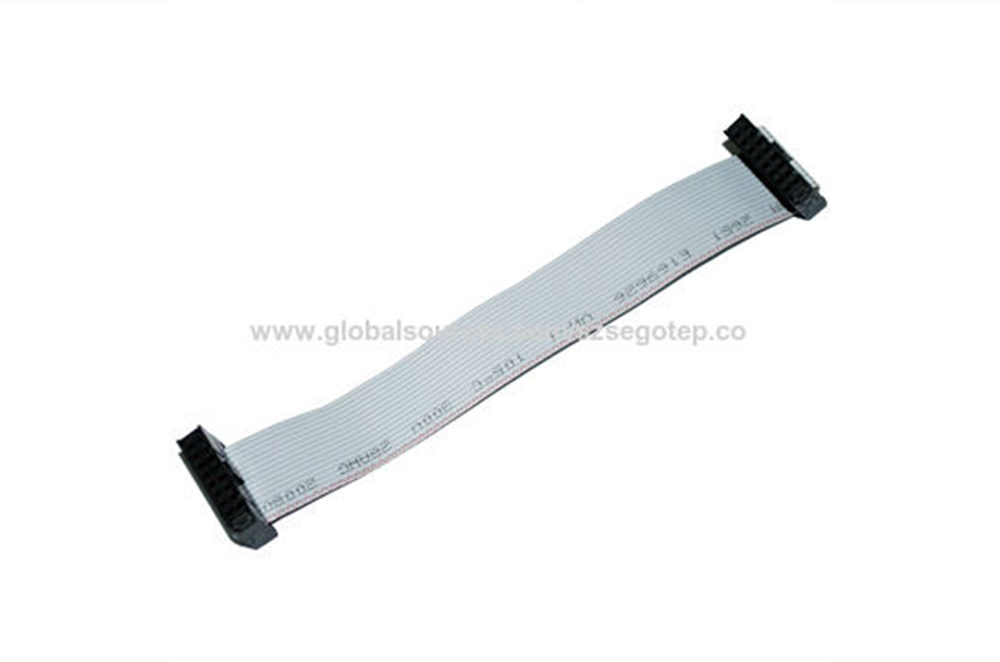

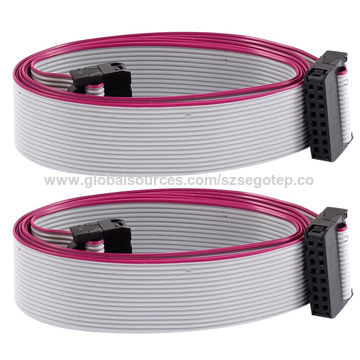

16-pin IDC cable 1.27mm with 2.54mm female connector

Key specifications/special features:
Wire mold: UL2651
Cable pitch range: 0.4mm, 0.635mm, 1.0mm, 1.27mm
Connector pitch range: 2.54mm
Conductor range: 24-30AWG
Connector pins: 6-40P, 6-50P, 6-64P
Cable color: grey with red edge or grey with blue edge or black with white edge
Connector color: usually black, grey & red
Cable length: 10cm, 15cm, 30cm or customized
Applications: computer/desktop data transfer, power transfer, electronics, communication data transfer
Certified: hook up wire, UL, VDE, CSA
Material: SORY standard PBT
Terminals: bronze and phosphor bronze
Connector: gold-plated/nickel-plated
Rated current: 1A
Maximum voltage: AC 500V/1 minute
Insulation resistance: 1000mΩ
Contact resistance: 15mΩ
Operating temperature: -40°C - +105°C

  1. RoHS materials
  2. UL conform
  3. Professional & experienced engineers
  4. Competitive price
  5. On-time service
  6. 3 years product warranty
  7. More than 16 years of experience
  8. High technology
  9. Lead time: 3-5 days
  10. Offer technology support
  11. Small quantity order is accepted
  12. OEM/ODM services provided
